Polyimide(P84) Dust Collector Filter Bag

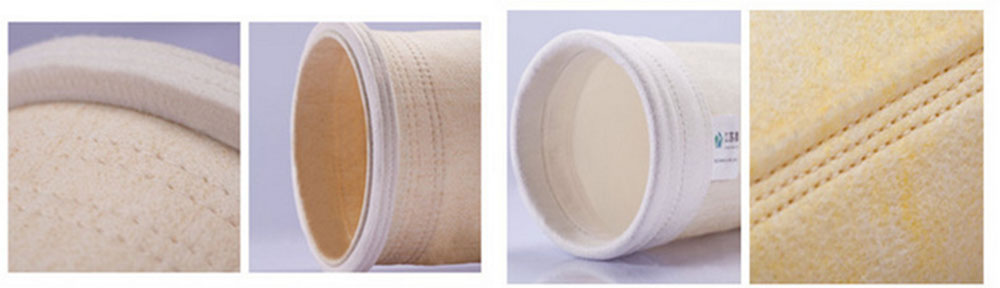

1.The feature Of P84 needle punched felts bags in Thailand
P84 polyimide needle felts are excellent high temperature filter media in terms of performance, generally surpassing the other standard media with the exception of PTFE.
P84 fiber filter material has no melting point temperature and is naturally golden yellow. The P84 polyimide fiber filter material is not a hygroscopic fiber filter (about 3% water absorption at 65% relative humidity).
In addition, since the P84 fiber is a profiled (leaf-type) cross-section structure with a large filtration surface area and excellent filtration performance, P84 fiber is often implanted on the surface of the filter material to improve the filtration performance of the filter material.
2. Physical Proerties of P84/Polyimide filter bag for dust collector
High Temperature no-woven P84 needle punched felt dust collector Filter Bags
Technical Specification
Name/Quality
100% P84
Component/
Shell Fiber
100% P84
Scrim
100% PTFE
Weight
500±5%gsm
Thickness
2.2±0.2mm
Air Permeability /200Pa L/dm2.min
130-180
Tensile Strength N/5*20CM
Length
≥800
Cross
≥1200
Elongation at break %
Length
≤30
Cross
≤50
Temperature ( Celsius Degree)
Continue
240
Peaks
260
Finish
Singeing, Calendering, Heat-set
Use Scope
Cement, Steel, Construction, Metallurgy,etc
3. Production Process
1)Fiber:high grade P84 fiber
2)Scrim: acrylic
3)Produce Process:needle punched
4)Filter Felt Weight: 550±20gsm
5)Filter Felt Thickness: 2.0±0.2mm
6)Finish treatment:Singeing, calendaring
7)Laboratory Testing:check the test report below
8)Cut according to customer's requirement
9)Packing according to customer's requirement
4. installation diagram
1.unpack the filter bag
2.Insert flower board hole/cell plate
3.Knead the filter bag collar
4.Align the collar with the card
5.Adjust the position of the collar
6.Align the collar to confirm position
7.Filter bag installed in place
8.Check for appropriateness
9.Finally insert the dragon skeleton/dust collector accessories filter cages
5. Application field:
P84 is mainly used in flue gas purification of asphalt mixing, cement kiln, drying, burning, smelting, various industrial kiln, coal-fired boiler and waste incineration, and is widely used in processes with high emission concentration requirements.
6. The Water-Oil repellent Non-woven needle felt P84/Polyimide dust filter bag with PTFE membrane for air filter collector packaging:

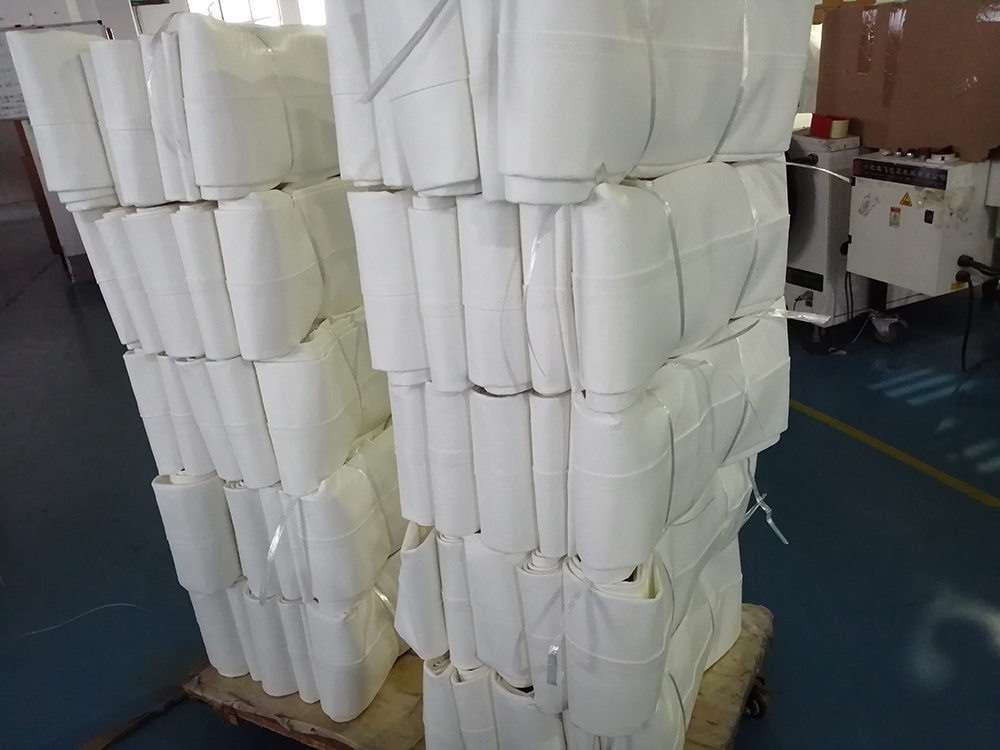

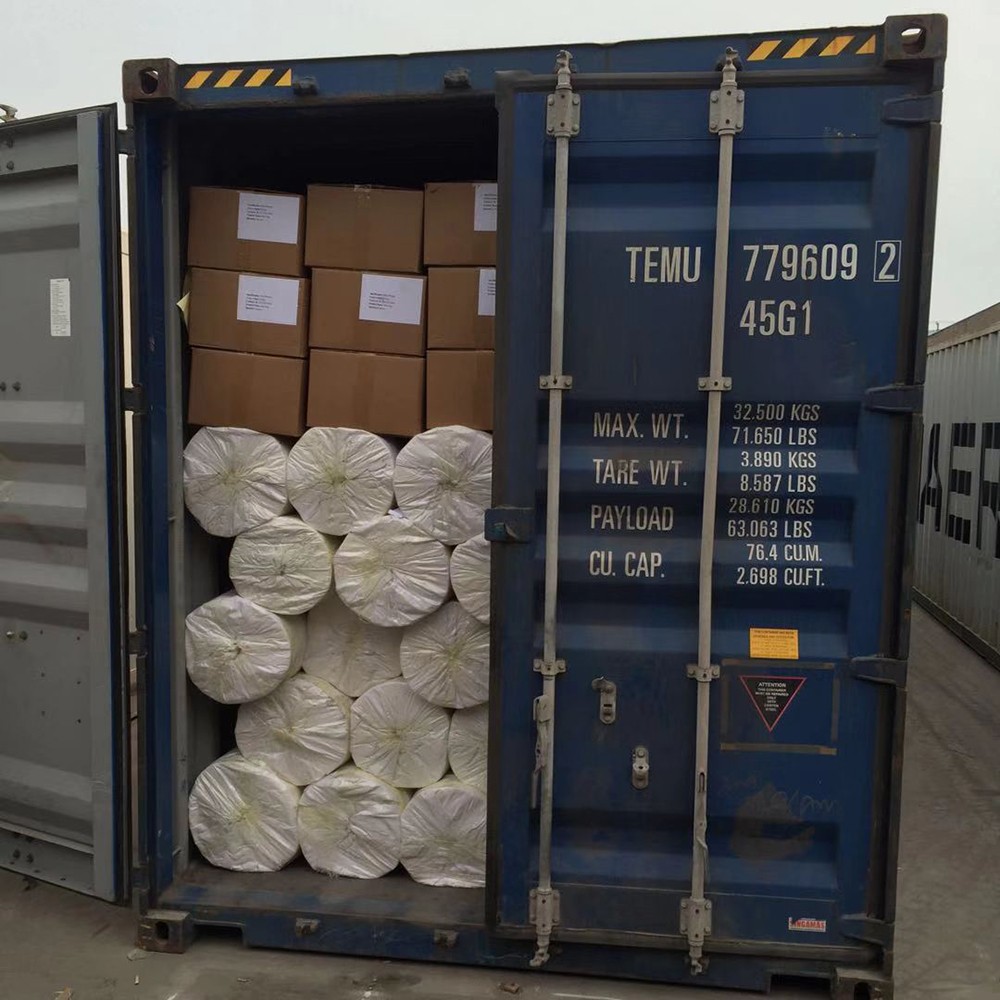

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
