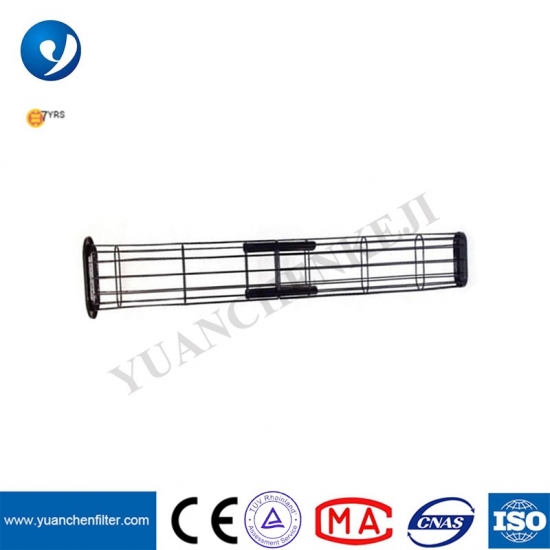

filter cages made of galvanized mild steel with the diameter of 140 mm
Technical Data for Filter cages with Galvanized 100mm Dia X 2200 mm long Conical
1.material of bag filter cage: carbon steel or SS304,316,316L
2.type of cage: any style
3.type of the horizontal bar: round ring or star or envelop or oval
4.surface treatment: zinc-galvanization or silicon coating or epoxy
5.style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.

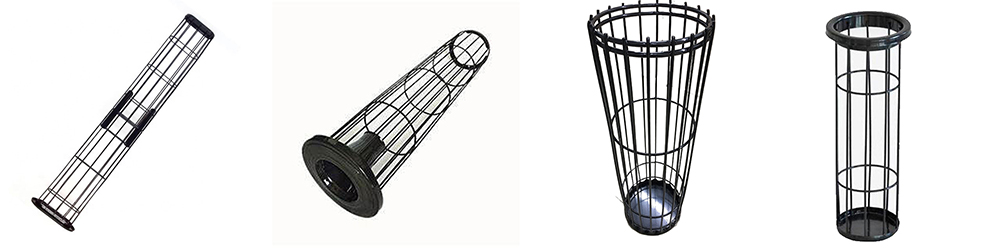

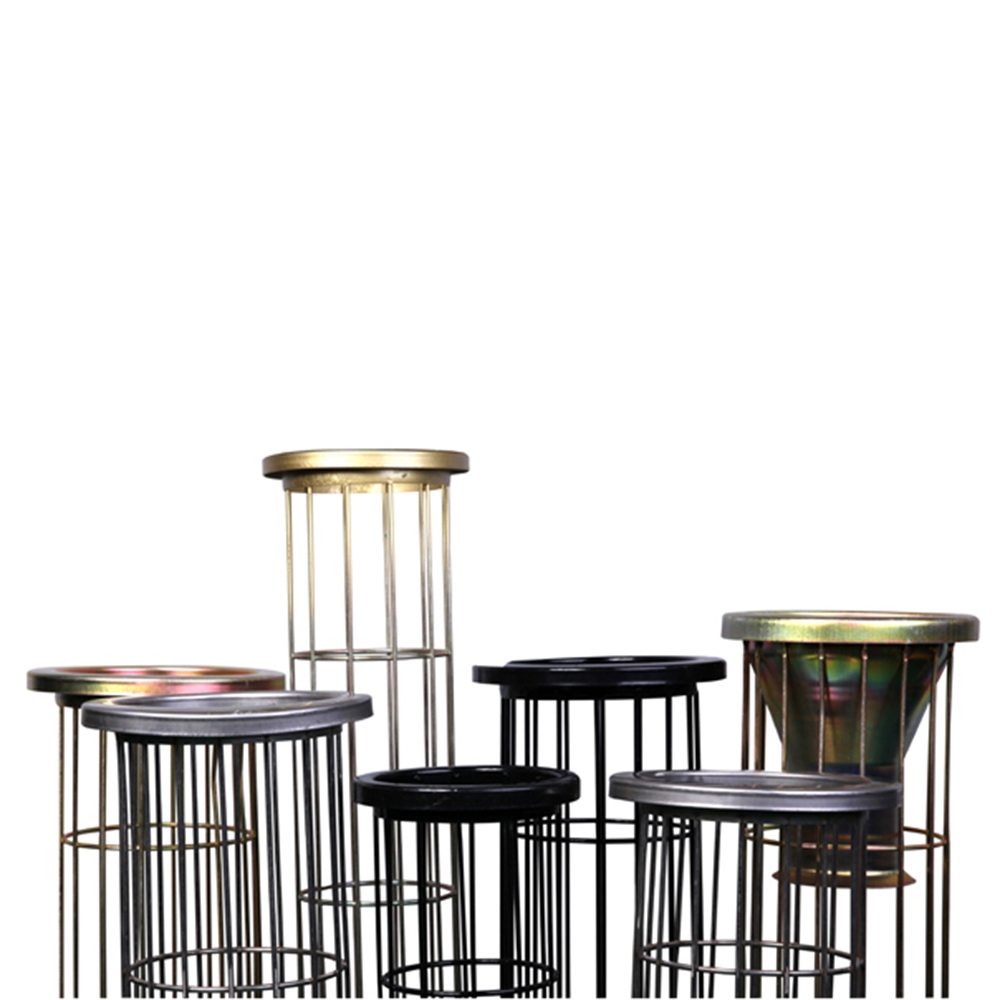

More baghouse filter bag cage display

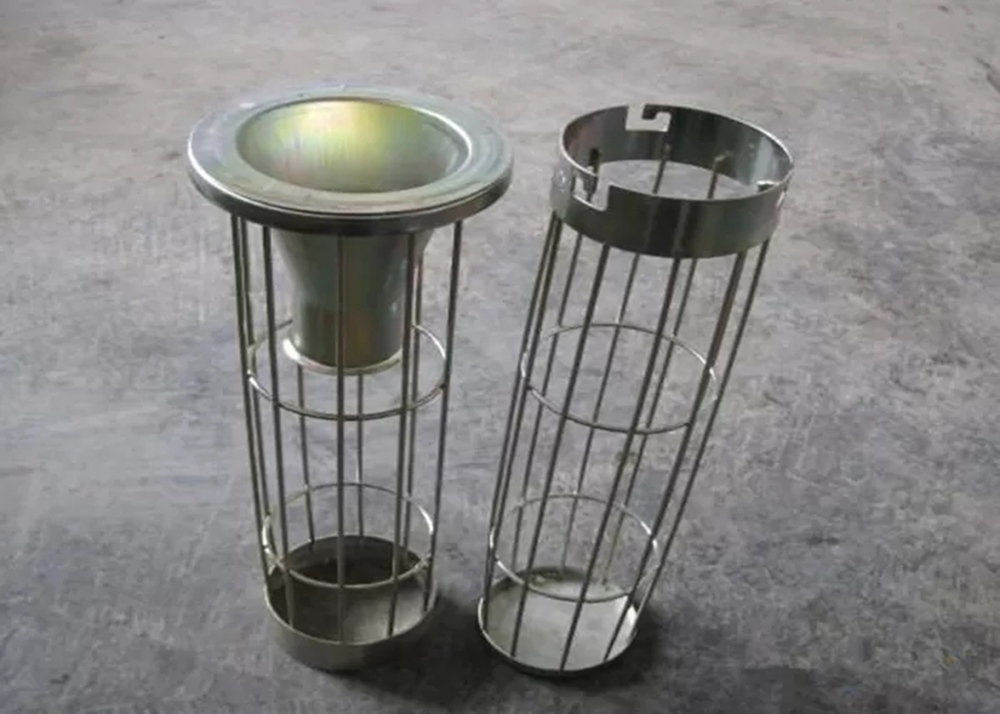

Industrial dust collector bag filter cages with venturi tube
Dimension Recommended
A.Round Style
ΦDiameter |
Bag Diameter |
Length |
115 |
120 |
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 |
125 |
130 |
|
147 |
152 |
|
195 |
200 |
B.Flat Style
Perimeter |
Bag Perimeter |
Length |
800 |
800 |
2000 3000 4000 |
900 |
900 |
5000 6000 |
C.Envelope Style
Length Width Thickness |
Bag Length Width Thickness |
1500*750*25 |
1500*750*25 |
Product Process
Package of Dust Filter Cages
We provide all kinds of standard export packing for cargo protection. The dust bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
FRQ
Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact us if you have any questions.
