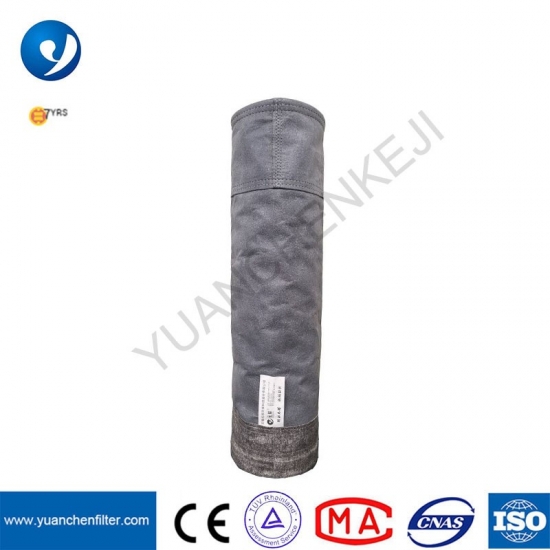

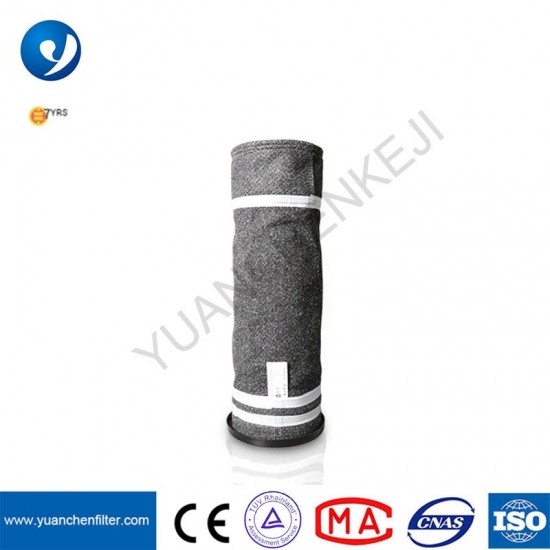

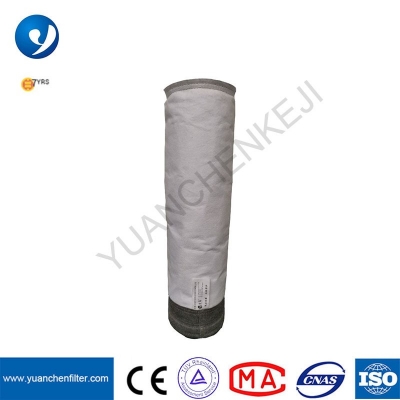

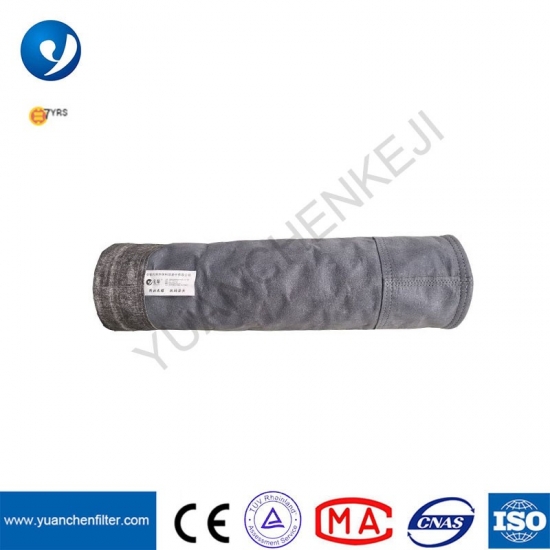

Polyester Flame Retardant Filter Sleeves for Dust Collection
1.Product Description
2.Filter Fabric Performance Evaluation
3.Technical Data
|
Technical Specification |
||
|
Name/Quality |
Flame Retardant Polyester Filter Fabric |
|
|
Component |
Shell Fiber |
100% PE |
|
Scrim |
100% PE Filament Fiber |
|
|
Weight |
600-650gsm |
|
|
Thickness |
2.6-2.9mm |
|
|
Air Permeability/m³/m³/min |
14-16 |
|
|
Tensile Strength/N/5*20CM |
Length |
≥1200 |
|
Cross |
≥1500 |
|
|
Heat Shrink% |
Length |
＜1% |
|
Cross |
＜1% |
|
|
Temperature/( Celsius Degree) |
Continue |
130 |
|
Peaks |
150 |
|
|
Finish |
Singeing, Calendering, Heat-set, PTFE Membrane | |
|
Use Scope |
Cement, Steel, Construction, Metallurgy，Biomass Boiler |
|

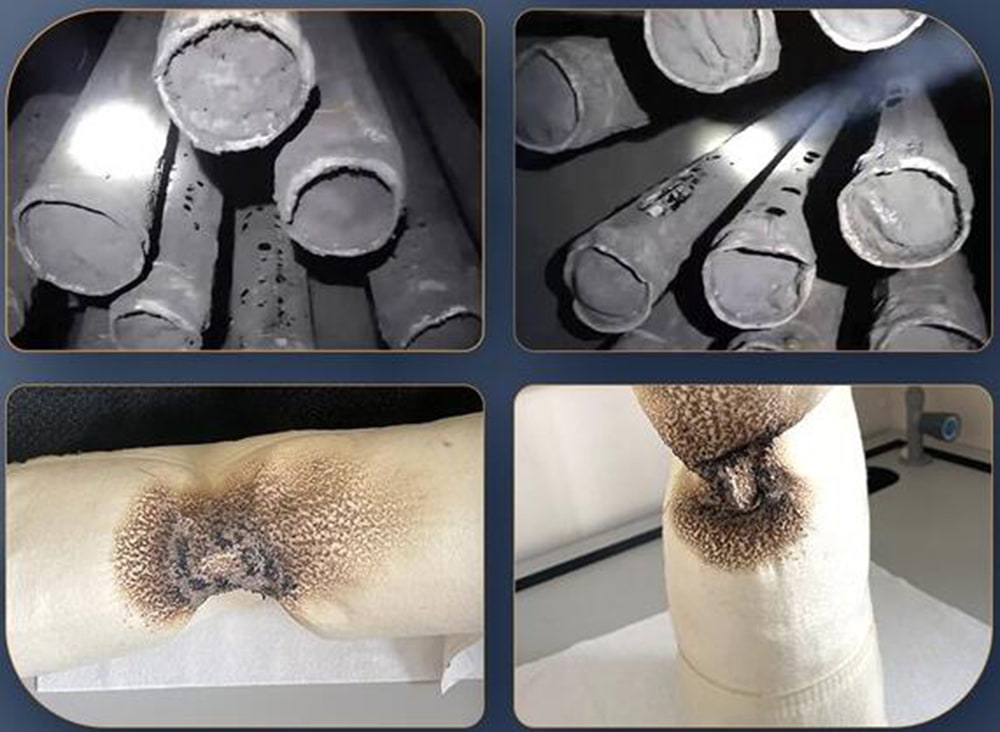

4.Dust Filter Material Bag Burning Case
5.Project Case-Biomass Boiler Project
Processing technology: "Xingmei" flame retardant filter material
Inlet: Dust concentration 20000mg/Nm3
Flue gas temperature: long-term <240℃, instantaneous 280℃
Outlet: Dust concentration 10mg/Nm3
Bag dust removal method: pulse cleaning
Flue gas NO2 concentration <300mg/Nm3
Flue gas SO2 concentration <200mg/Nm3
Oxygen content in flue gas <15%
Flue gas moisture content <20%
Application industry field: heating
Coal burning form: biomass heat transfer oil furnace
6.Why choose Flame Retardant Polyester Filter Fabric Bag not Common Polyester Filter Sleeve?
5.1 Dust is flammable
5.2 Mars Intervenes
5.3 Dust Electrostatic

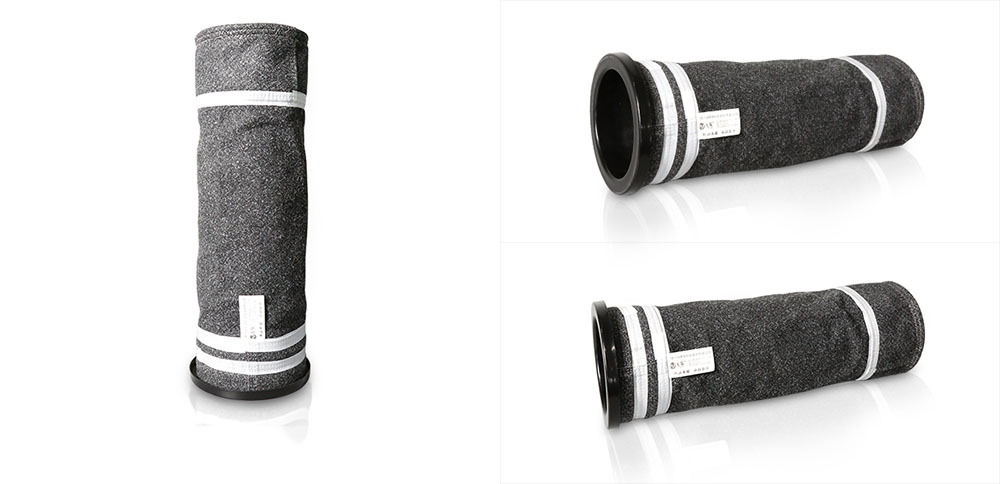

7.The Filter Bag Packaging
Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
8.FRQ
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
