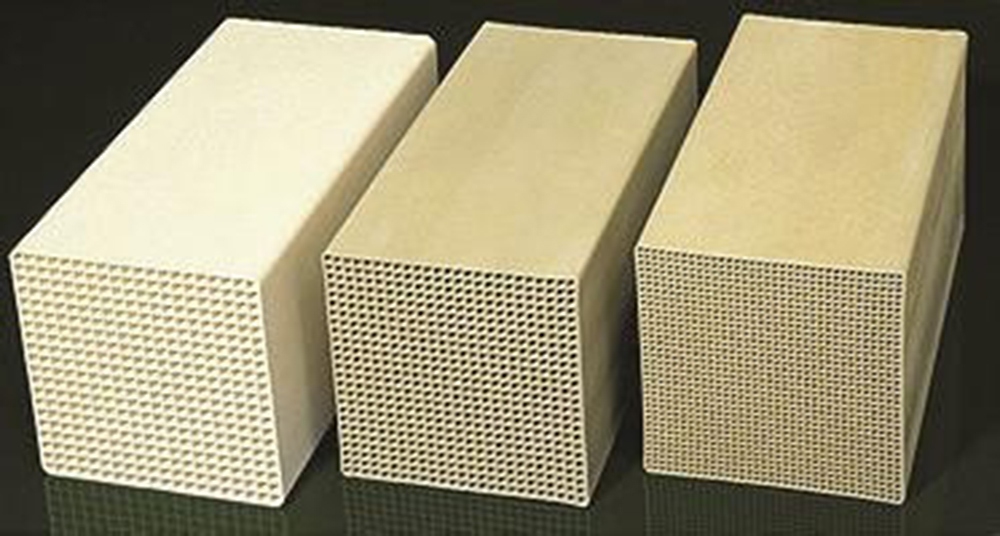

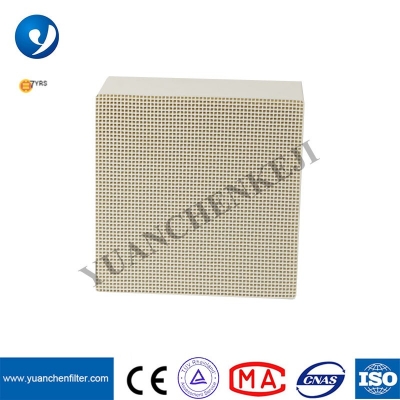

V2O5/TiO2 Honeycomb SCR Catalyst
Production Description
1.High activity & removal efficiency
2.Low SO2 conversion rate
3.Low NH3 slip
4.Excellent resistance to poisoning & abrasion
5.High durability & stability
6.Small volume ,high specific surface area,economical and practical
7.Unique components based on the flue-gas analysis,wide applications
8.High temperature products
9.Harder material to ensure erosion resistance and lifetime
10.TiO2 base ,high surface area per unit volume
11.Improved compositions,high resistance to poisoning
12.Wide applications,high durability
We manufacture catalyst in a number of different pitched.The choice of pitch is optimized after the study of the flue gas composition and the allowable pressure drop across the SCR reactor.
Typical industrial applications:
It is widely used inthermal power plants, coal-fired power plants, waste incineration plants, steel plants, fertilizer plants, nitric acid plants, cement plants, petrochemical chemical plants and other all industrial which need to reduce the NOx emissions, also used in diesel engines tail gas treatment etc..
Main specifications & technical index of honeycomb SCR catalyst:
|
Hole Number (PCS) |
Cross Section (mm) |
Hole Dia. (mm) |
Wall Thickness (mm) |
Catalyst Pitch (mm) |
Open Porosity (%) |
Specific Surface Area (m2/m3) |
Applicable Scope |
|
15×15 |
150×150 |
8.45 |
1.35 |
9.80 |
71.40 |
338 |
Coal fired unit, high smoke dust |
|
16×16 |
150×150 |
8.00 |
1.20 |
9.20 |
72.82 |
383 |
|
|
18×18 |
150×150 |
7.10 |
1.10 |
8.20 |
72.60 |
409 |
Coal fired unit, medium dust |
|
20×20 |
150×150 |
6.40 |
1.00 |
7.40 |
72.82 |
469 |
|
|
21×21 |
150×150 |
6.10 |
0.95 |
7.05 |
72.93 |
478 |
Coal fired unit, low smoke dust |
|
22×22 |
150×150 |
5.80 |
0.90 |
6.70 |
72.36 |
499 |
|
|
25×25 |
150×150 |
5.00 |
0.90 |
5.90 |
69.44 |
577 |
Coal fired unit, very low dust |
|
30×30 |
150×150 |
4.10 |
0.80 |
4.90 |
67.24 |
693 |
Oil fired unit, very low dust |
|
35×35 |
150×150 |
3.65 |
0.55 |
4.20 |
72.53 |
795 |
|
|
40×40 |
150×150 |
3.20 |
0.50 |
3.70 |
72.82 |
910 |
Natural gas fired unit |
|
45×45 |
150×150 |
2.78 |
0.50 |
3.28 |
69.56 |
1000 |
|
|
55×55 |
150×150 |
2.20 |
0.50 |
2.70 |
65.07 |
1275 |
|
|
Unit catalyst size:150×150×(length300-1350) mm. |
|||||||
According to the customer's requirements, we can produce different pitch and formulations of honeycomb SCR de NOx catalyst.
Technology Introduction

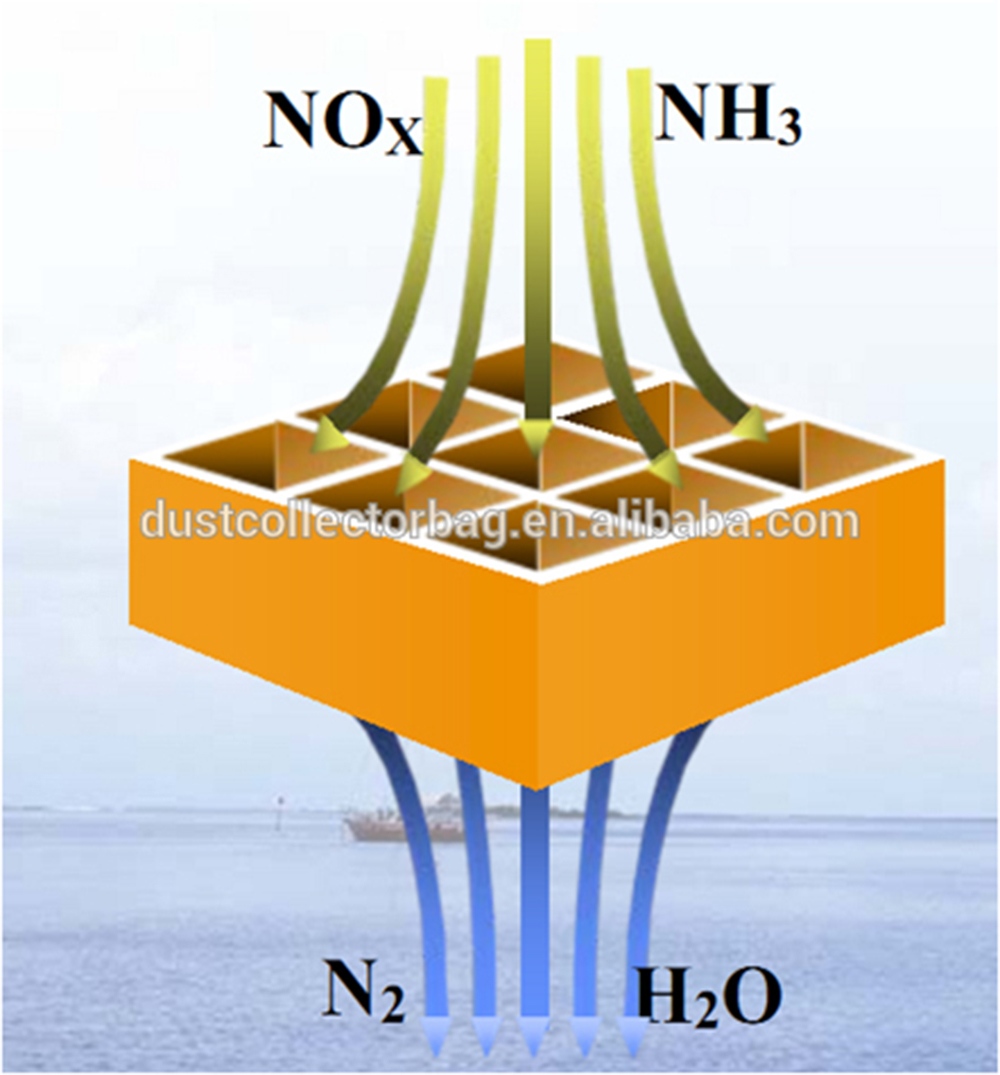

SCR technology is a reaction at use of the denitration catalyst at a certain temperature (270-400℃),that NOX in the flue gas mixed with ammonia gas from the reducing agent supply system after the occurrence of the selective catalytic reduction reaction of nitrogen and water ,thereby reducing NOx emissions,and reducing smoke pollution to the environment .
Several reductants are currently used in SCR applications including anhydrous ammonia,aqueous ammonia(25%NH3)or use.Typical SCR system consist of anhydrous ammonia storage &transportation (using anhydrous ammonia as the reductant )evaporator ,AIG and mixer,flue gas system ,reactor and ammonia emergency management system.
Reaction:
4NO+4NH3+O2→4N2+6H2O, 2NO2+4NH3+O2→3N2+6H2O

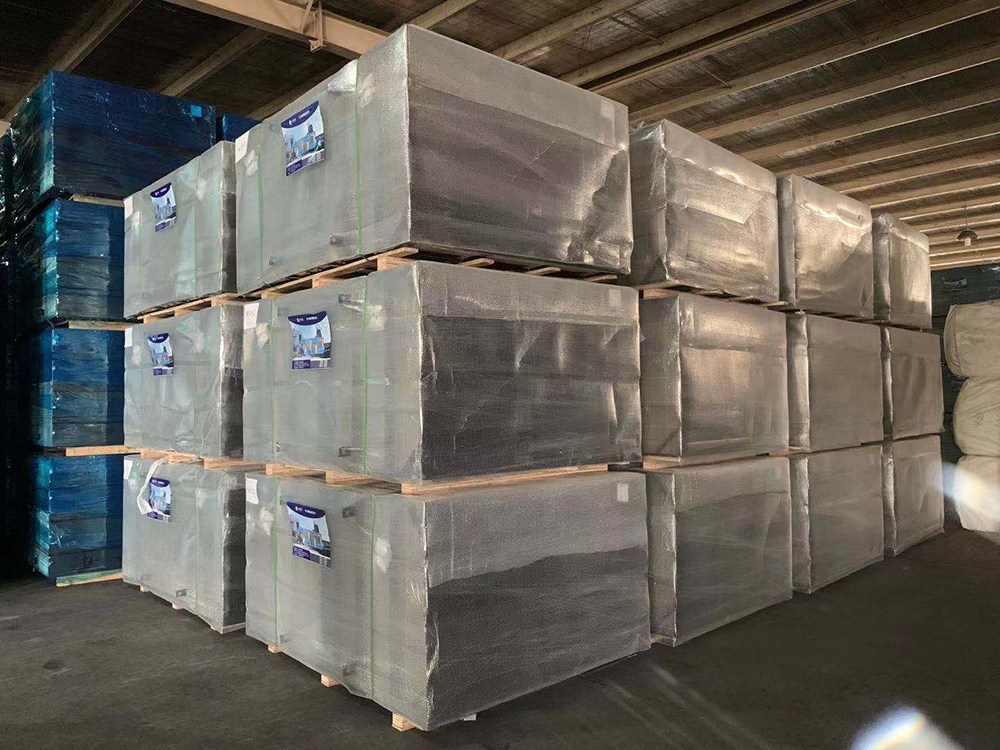

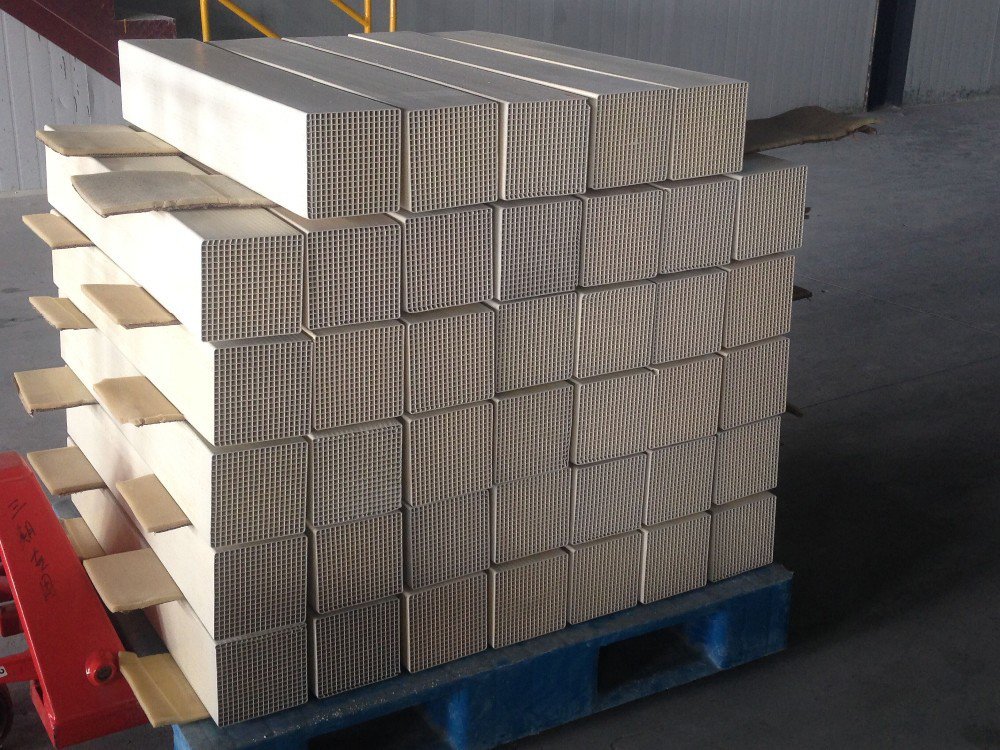

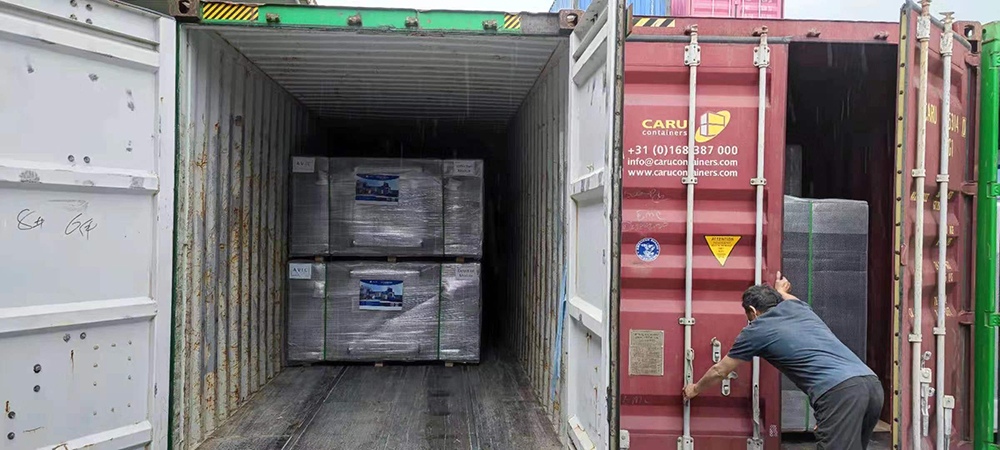

The honeycomb SCR catalyst packaging
Carton box to pallet, wooden case or as per customer's requirements.
Certification：we passed ISO9001 ,ISO4001, SGS,CNAS and others
