Dust filter bags

PPS with PTFE membrane Air Dust Needle Felt

Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
  • Item NO.:

    PPS-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100%PPS
  • Weight:

    500 550 600 gsm
  • Thickness:

    1.7±0.2mm
  • Temp. Range:

    Continue 160℃ Peak 190℃
  • Application:

    Cement,Steel,Construction,Metallurgy,Power Plant
  • Product Detail

PPS with PTFE membrane Air Dust Needle Felt


1.Brief Introduction Of Bag filters

Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.


2.We pay attention to following processing matters:

(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.

(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.

(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.

(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.

(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.


Technical Specification

Name/Quality

100% PPS

Component

Shell Fiber

100% PPS



Scrim

100% PPS

Weight

550±5% gsm

Thickness

1.7±0.2mm

Air Permeability /200Pa  L/dm2.min

20-50

Tensile Strength   N/5*20CM

Length

≥900



Cross

≥1200

Elongation at break %

Length

≤30



Cross

≤50

Temperature                                        ( Celsius Degree)

Continue

160



Peaks

190

Finish

Singeing,Calendering,Heat-set

Use Scope

Cement, Steel,  Construction, Metallurgy


3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


4.Advantages of the product:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.

2.Strong intensity

3.Excellent anti-abrasion,good finishing treatment

4.Good raw material, competitive price

5.High filtration efficiency

6.Fast delivery

7.Size can be customized

8.Factory manufacturer could contal quality and price

9.Strict quality inspection and contol

10.Professional designer teams to match with your operating condition


Application field:

The products are widely used for dust filter and collection in the bag houses of cement production, power station, coal plant, steel company,flour mill, pharmacy company, asphalt plant, carbon black company, garbage incinerator, etc.

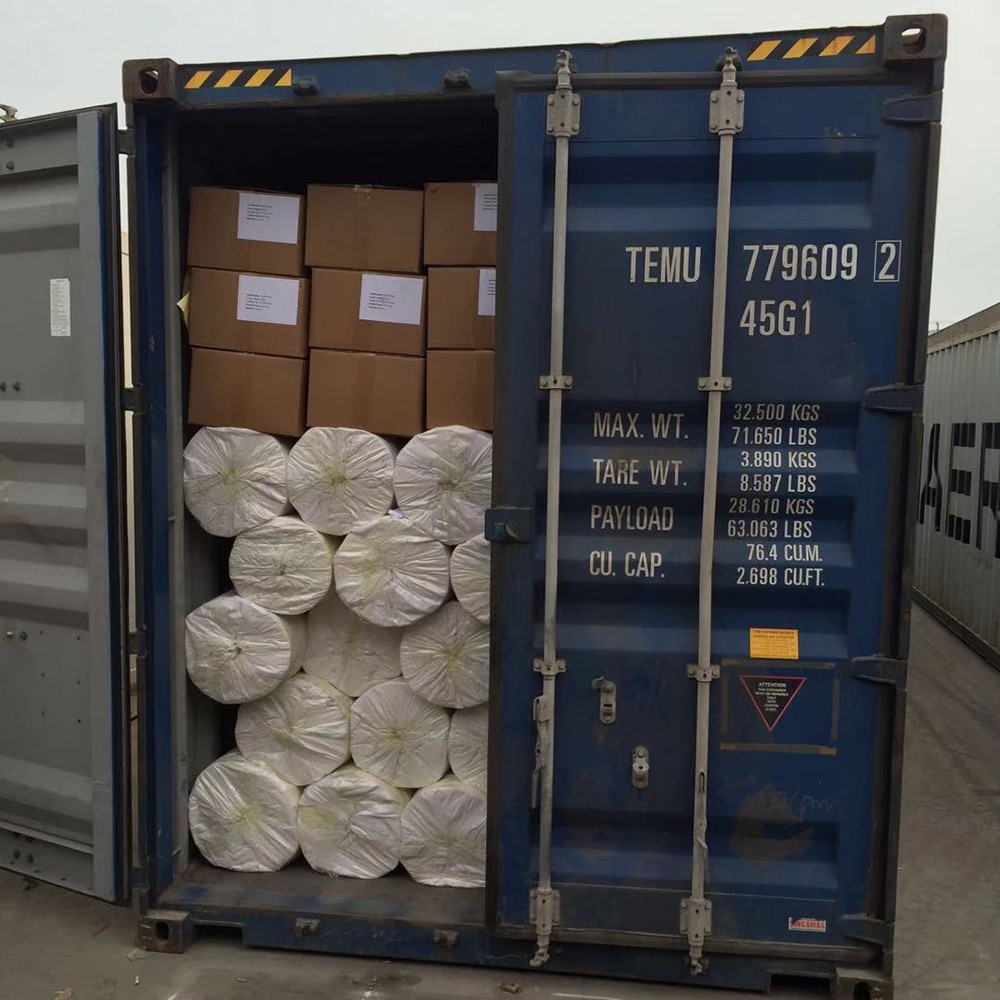

The filter bag packaging:

The PPS with PTFE membrane Air Dust Filter Fabric is packed in transparent cloth and outside is covered with woven bag.


FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

   2. We respect every customer as our friend and we sincerely do business and make  friends with them.
