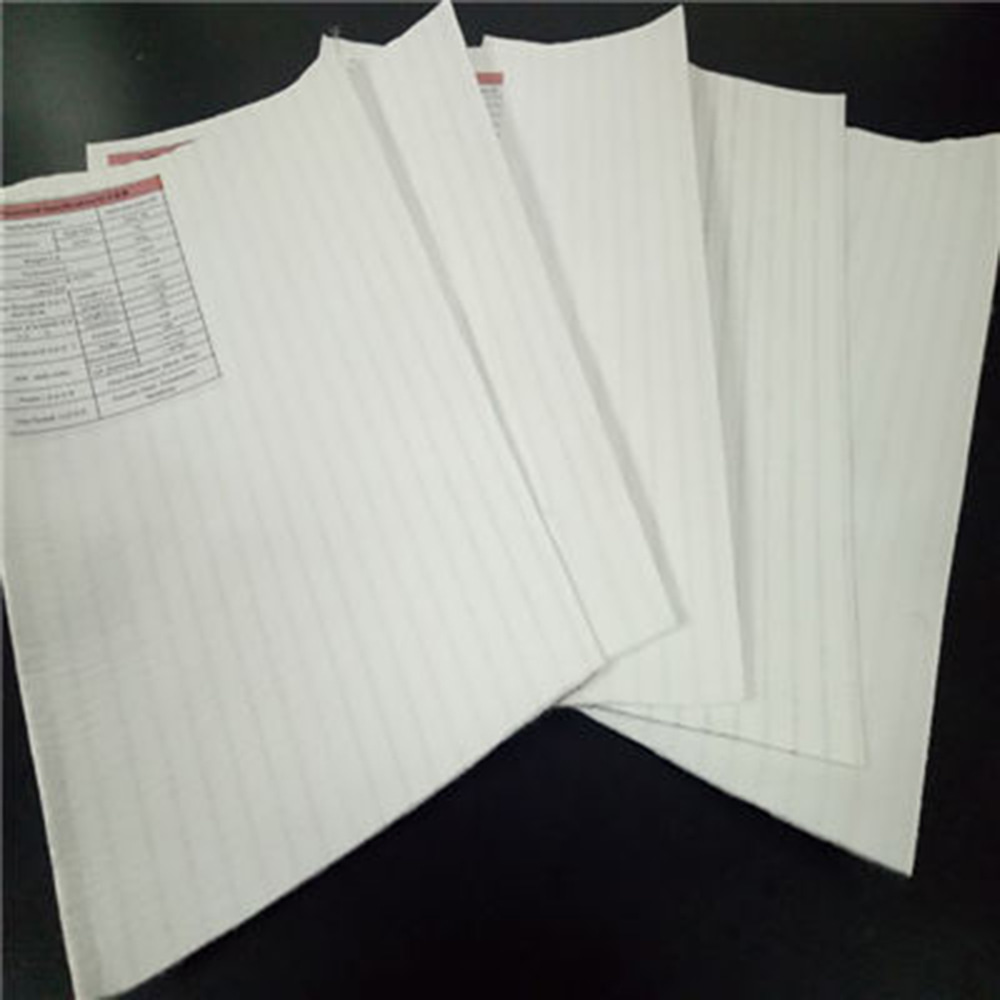

Polyester Filter Fabric Reinforced Needle Polyester Felt for Non Woven Fabric
1.Brief Introduction Of nonwoven filter material
Antistatic filter cloth reduces the resistance, prolongs the working life of filter bag , and operates safely dust collector.Mainly used for baghouse of coke powder and coal dust.
2.Technical Specification for filter bag cloth
|
Technical Specification |
||
|
Name/Quality |
100% PE |
|
|
Component |
Shell Fiber/纤维 |
100% PE |
|
|
Scrim/基布 |
100% PE filament fiber |
|
Weight |
500±5% gsm |
|
|
Thickness |
1.9±0.2mm |
|
|
Air Permeability /200Pa L/dm2.min |
20-50 |
|
|
Tensile Strength N/5*20CM |
Length |
≥1000 |
|
|
Cross |
≥1500 |
|
Elongation at break % |
Length |
≤30 |
|
|
Cross |
≤50 |
|
Temperature ( Celsius Degree) |
Continue |
130 |
|
|
Peaks |
150 |
|
Finish |
Singeing,Calendering,Heat-set,PTFE Membrane |
|
|
Use Scope |
Cement, Steel, Construction, Metallurgy |
|
3.Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4)Inspection: Filter bags will be according to the national standards, industry
standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4.Advantages of the dust filter fabric:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could contal quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
5.Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate
Soap powder
6.The dust collector filter fabric packaging:
packed into a PE bag
7.Workshop
8.FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
