Industrial SS304 3.2MM 12 Wires Filter Bag Cages
Product Description
Filter bag cage is the rib of filter bag, it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.

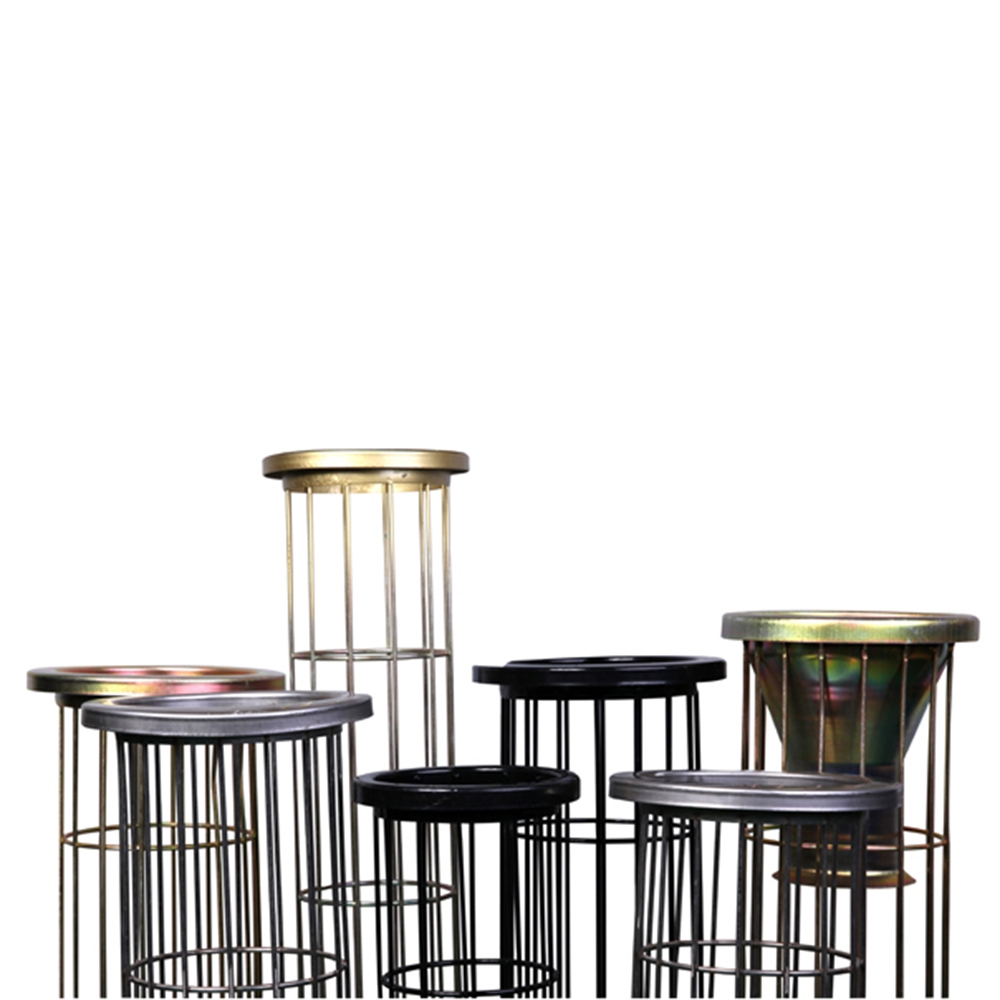

More baghouse filter bag cage display
Industrial dust collector bag filter cages with venturi tube
Dimension Recommended
A.Round Style
|
ΦDiameter |
Bag Diameter |
Length |
|
115 |
120 |
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 |
|
125 |
130 |
|
|
147 |
152 |
|
|
195 |
200 |
B.Flat Style
|
Perimeter |
Bag Perimeter |
Length |
|
800 |
800 |
2000 3000 4000 |
|
900 |
900 |
5000 6000 |
C.Envelope Style
|
Length Width Thickness |
Bag Length Width Thickness |
|
1500*750*25 |
1500*750*25 |
How to install Industrial Dust Filter Flame Filter Bag Cage?
1) Handle with care during installation, do not throw, do not drag on the ground, etc., so as not to damage the surface of the bag cage and the interface snap ring.
2) The cage has three sections, the upper, the middle, and the lower section. When installing, two people must cooperate. First put the next section into the filter bag carefully. When leaving a certain length, insert the steel bar into the bag cage, and then use the steel bar to move the lower section of the bag cage. Hang on the flower board. Then one person holds the upper section bag cage with both hands, and the other person inserts the pin into the pin hole.
3) After the upper and lower bag cages are connected, check whether they are connected firmly and whether the plug is inserted into the pin hole.
4) The whole bag cage frame is slowly lowered into the filter bag, and it is never allowed to quickly impact the bottom of the bag. If there is any abnormal blockage, find out the cause before inserting it.
5) Check the contact between the head cover of the bag and the flower plate. The contact between the head cover and the flower plate should be good. If there is a large looseness, carefully check the reason.
6) After the bag cage is installed, check the distance between the bottom ends of the filter bags, and adjust the distance between the bottom ends of the filter bags in the clean air chamber by rotating the bag cage to ensure that the bottoms of the filter bags do not collide with each other.
7) After installing the filter bag cage, all the packing boxes, membranes, installation tools and other materials must be taken out of the clean air chamber. Objects are not allowed to fall into the installed filter bag cage. , Should be removed in time.
Package of Dust Filter Cages
We provide all kinds of standard export packing for cargo protection. The dust bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
FRQ
Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
