Industrial FMS nonwoven filter cloth air filtration pulse jet dust collector

Industrial FMS nonwoven filter cloth air filtration pulse jet dust collector

Performance advantages of FMS needle felt

FMS needle felt material is a physical composite filter material of glass fiber and PPS, P84, NOMEX, etc. The price of this material is relatively low, and the use temperature can reach 260 ℃, which is not affected by the temperature change of the boiler; After the fiber of the material is chemically treated, the exhaust gas of the boiler combustion can also be treated. However, because its main component is glass fiber, its anti-folding performance is poor, resulting in a short service life (generally less than 1 year) of the filter material and poor filtration accuracy (dust removal rate).Performance advantages of FMS needle felt

◆Flomesi series products have high mechanical strength and low elongation;

◆High temperature resistance (there is a temperature range of 150~400℃ to choose from, see the attached table for the temperature range of various varieties);  ◆Good abrasion resistance, strong folding resistance (more than glass fiber fabric several times);  ◆Acid resistance, Strong alkalinity, good oxidation resistance;

◆Smooth surface, low running resistance, high filtration wind speed;  ◆Long service life, low price;

◆It is better than the glass fiber coated filter material in terms of temperature resistance, filtering wind speed, filtering accuracy and service life.  It can adapt to the following complicated working conditions:

1. Where the temperature is high and the temperature fluctuates greatly;

2. Working conditions with relatively high acidity and alkalinity and relatively strong corrosiveness;  3. Filtration of fine high-temperature dust and recovery of valuable metal materials;

4. Working conditions where the degree of adhesion is high or the humidity is high, and the coated filter material cannot be used.  The most suitable application areas:  Cement kiln (kiln head, kiln tail), shaft kiln tail, blast furnace gas purification, ferroalloy smelting furnace, garbage incinerator, power station coal-fired boiler, etc.

Technical data for filter cloth price philippines
Typical applications are Cement,Waste Incineration

Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Production details: Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread.

4)Inspection:  Filter bags will be according to the national standards, industry standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.

Advantages of us:

1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.

2. Strong intensity

3. Excellent anti-abrasion,good finishing treatment

4. Good raw material, competitive price

5. High filtration efficiency

6. Fast delivery

7. Size can be customized

8. Factory manufacturer could contal quality and price

9. Strict quality inspection and control

10. Professional designer teams to match with your operating condition

Application field:

In industry dust collection

.  Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash  ,Coal dust

.  Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

.   Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

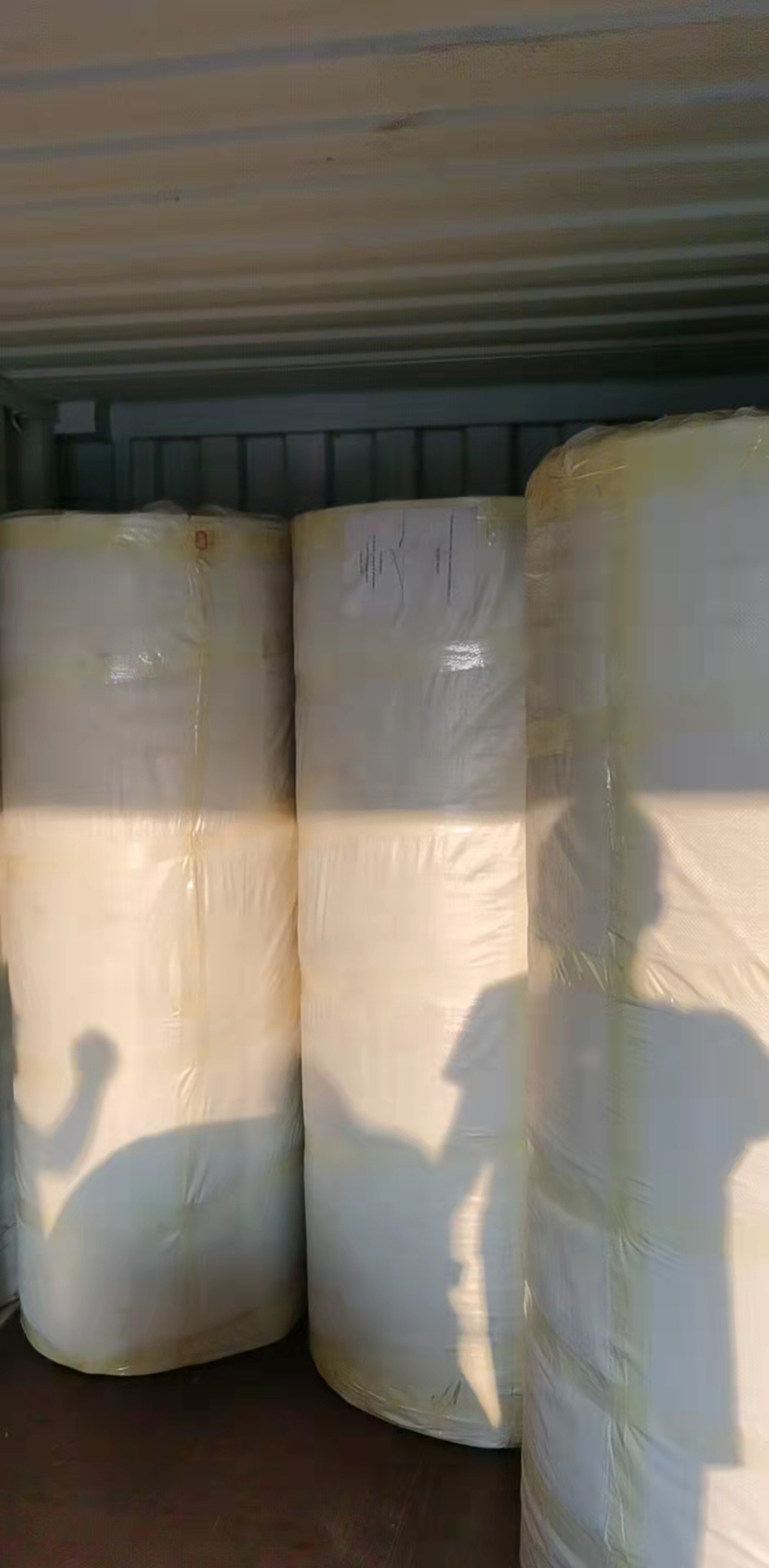

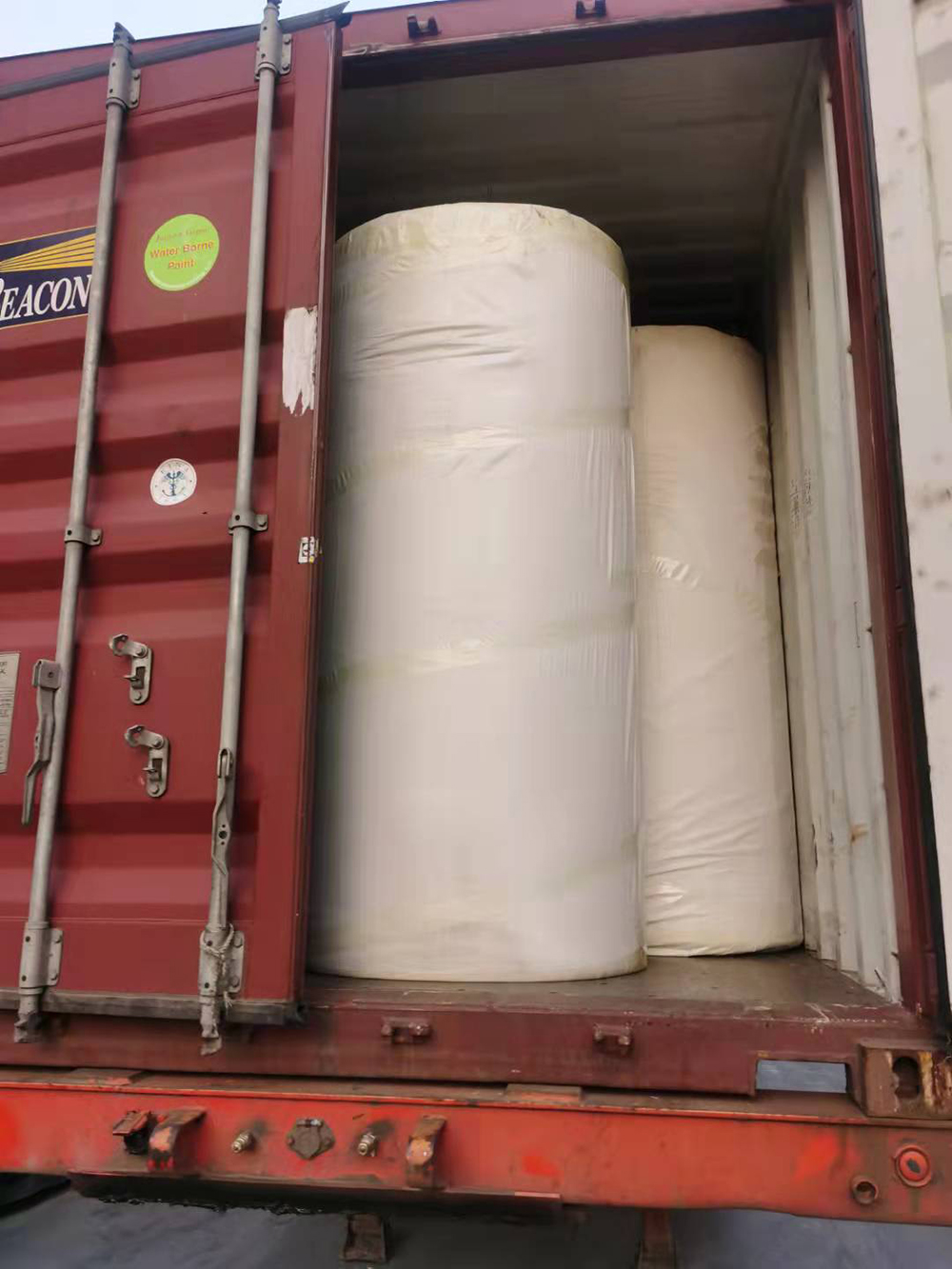

The air filter cloth packaging

Different types of filter needle punced felts must be individually packaged. In general, it is wrapped in plastic bags for water proof,or if you have special idea of package,we can do it and pls let me know.

FRQ

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.

Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW

Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
