Dust filter bags

High Temperature Resistance Silicone Coated Fiberglass Filter Fabric

Dust Collector Air Filter Fiberglass Filter Cloth With PTFE Membrane for Power Plant And Chemical Industry

  • Item NO.:

    Fiberglass-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100% fiberglass
  • Weight:

    450 550 750gsm
  • Thickness:

    2.2±0.2mm
  • Temp. Range:

    Continue 280℃ Peak 300℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

High Temperature Resistance Silicone Coated Fiberglass Filter Fabric


1.Product Description

 The Fiberglass Dust Filter Fabrics are proficient enough to filter out unwanted pollutants to retain expensive fine particles, and provide good all-around chemical and temperature resistance. Heavyweight fabric design and construction provides excellent dimensional stability and strength.

2.Technical Data

Name

Fiberglass Filter Fabric 750 g/m2 with PTFE membrane

Weight

750-800g

Thickness

0.73mm

Permeability- (l/m²s)

20-50

Weaving

Double twill

Structure of thread

Warp

DE75 1*2



Weft

DE75 1*4

Density(pcs/cm)

Warp

19



Weft

16

Tensile strength

Warp

≥4500

(N/5*20cm)

Weft

≥5000

Temperature-(℃ )

Continue

260



Instant

280

Finishing treatment

Heat-setting,PTFE impregnation,PTFE Membrane

Impregnation percent,%

≥10%


3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


4.Advantages of the product:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.

2.Strong intensity

3.Excellent anti-abrasion,good finishing treatment

4.Good raw material, competitive price

5.High filtration efficiency

6.Fast delivery

7.Size can be customized

8.Factory manufacturer could contal quality and price

9.Strict quality inspection and contol

10.Professional designer teams to match with your operating condition


5.Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate

Soap powder

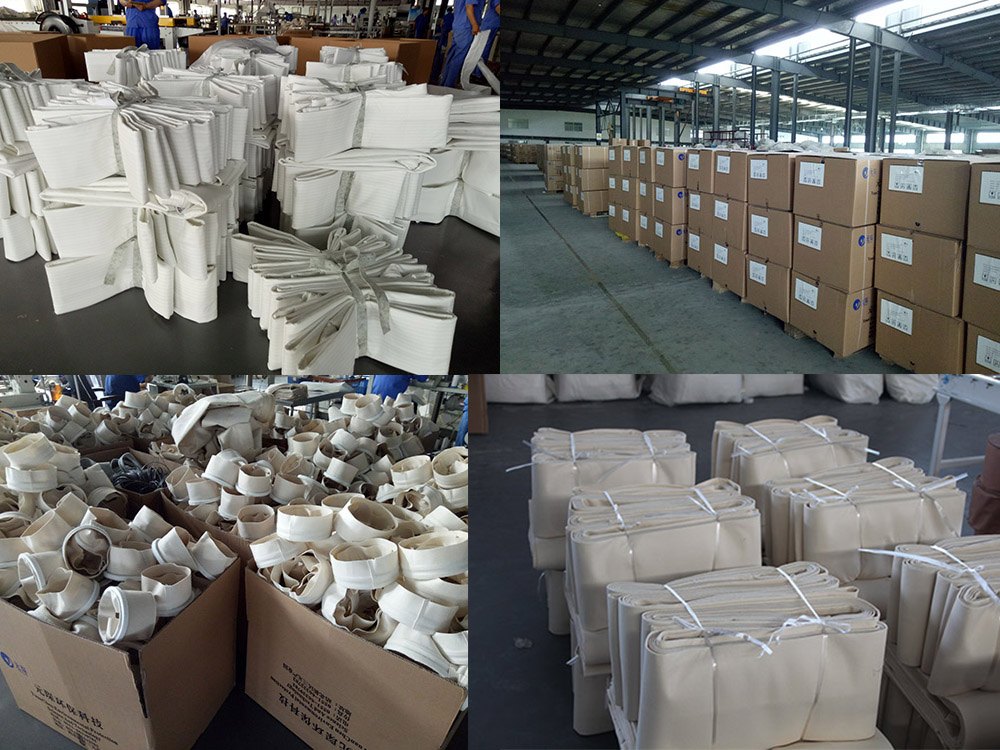

6.The fiberglass filter cloth packaging:

Usually packed into a PE bag with export standard.


FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

   2. We respect every customer as our friend and we sincerely do business and make  friends with them.
