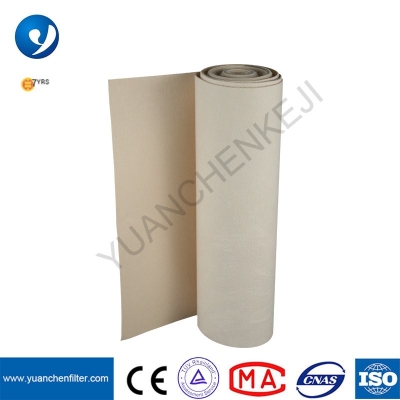

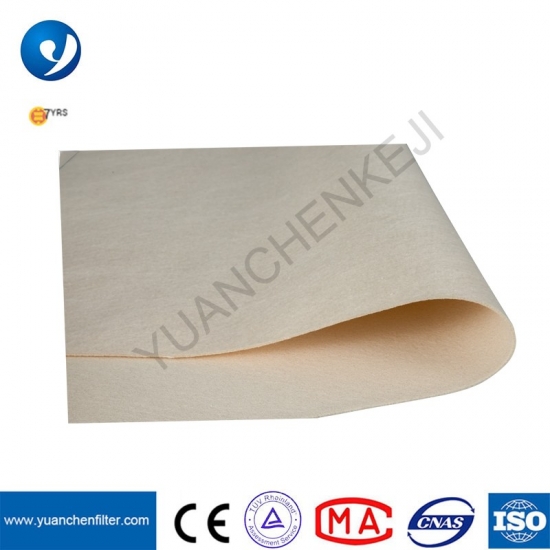

High Temperature Non-woven Needle Felt PPS PTFE Dust Filter Cloth/Fabric For Air Filter Collector
1. Brief Introduction Of PPS PTFE Composite Dust Filter Cloth
Long-term temperature resistance of 170℃, instantaneous temperature resistance of 210℃, is a kind of filter material with excellent high temperature resistance, acid and alkali resistance. It has various characteristics as a high-performance fiber; it can resist a variety of acids, alkalis and Chemical corrosion of oxidizer; has good hydrolysis resistance; typical applications are power plant and steel plant.
2、Technical Data
Technical Specification
Name/Quality
PPS+PTFE
Component
Shell Fiber
PPS+PTFE
Scrim
PTFE
Weight
550±5% gsm
Thickness
1.8±0.2mm
Air Permeability /200Pa L/dm2.min
120-150
Tensile Strength N/5*20CM
Length
≥900
Cross
≥1200
Elongation at break %
Length
≤10
Cross
≤50
Temperature ( Celsius Degree)
Continue
170
Peaks
210
Finish
Singeing,Calendering,Heat-set,PTFE membrance,Impregnation,WOR
Use Scope
Power Plant,Steel
3. Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3)Production details: Double bottoms and reinforcement to make abrasion resistance. Sewing thread: PTFE thread, polyester thread.
4)Inspection: Filter bags will be according to the national standards, industrys standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4. Advantages of Us:

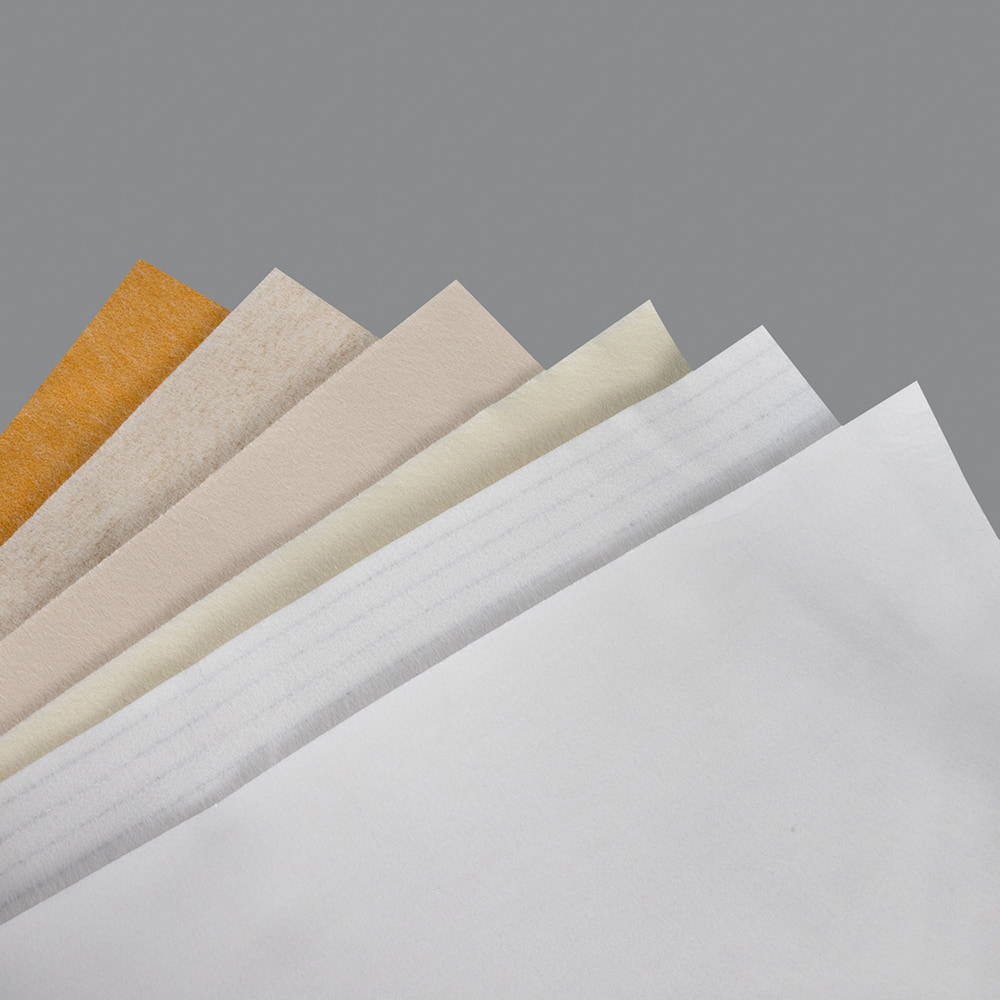

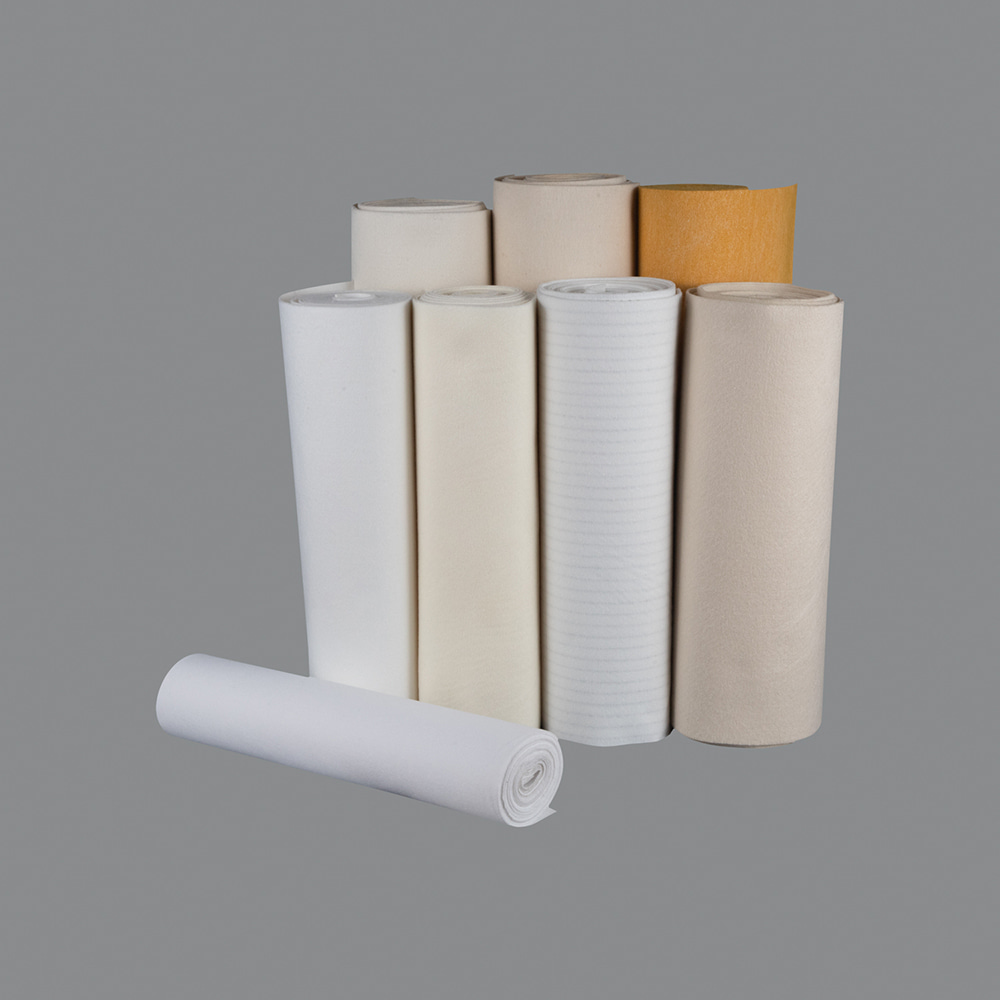

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could control quality and price
9.Strict quality inspection and control
10.Professional designer teams to match with your operating condition

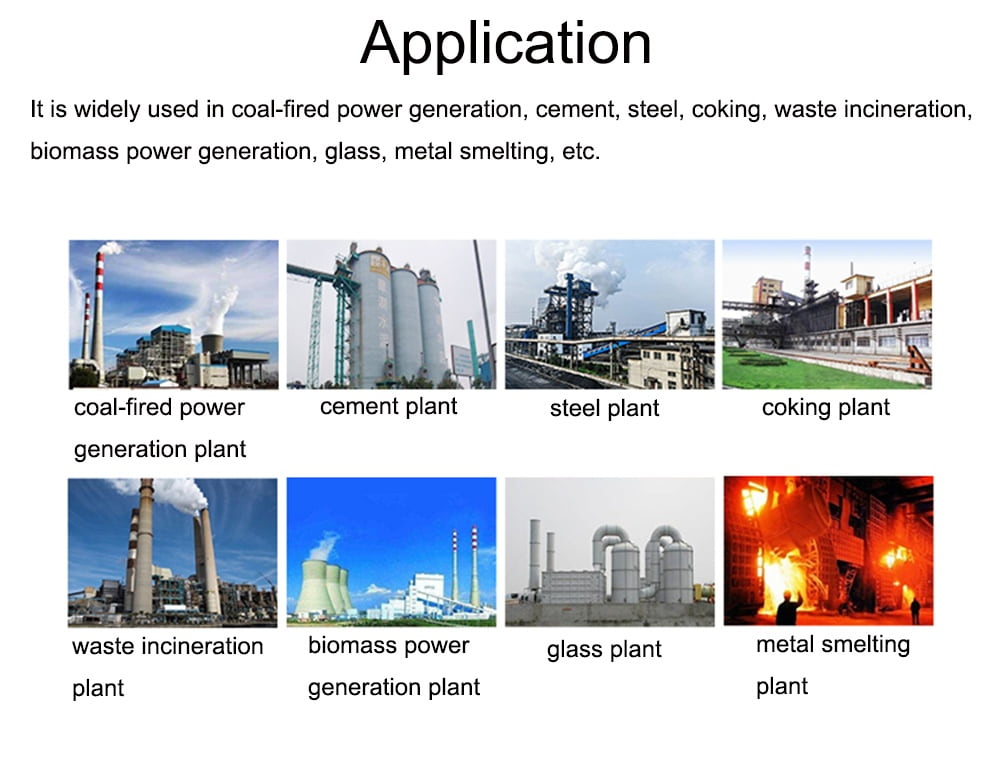

5. Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dust
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder
6.Packaging:
Usually packed into a waterproof PE bag.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
