High Quality SCR Denox Honeycomb Ceramic Catalyst
Selective catalytic reduction principle
The NOx reduction reaction takes place on the catalyst surface. Before entering the catalyst layer the ammonia is injected and mixed with flue gas:
4NO + 4NH3 + O2 → 4N2 + 6H2O NO + NO2 + 2NH3 → 2N2 + 3H2O 2NO2 + 4NH3 + O2 → 3N2 + 6H2O

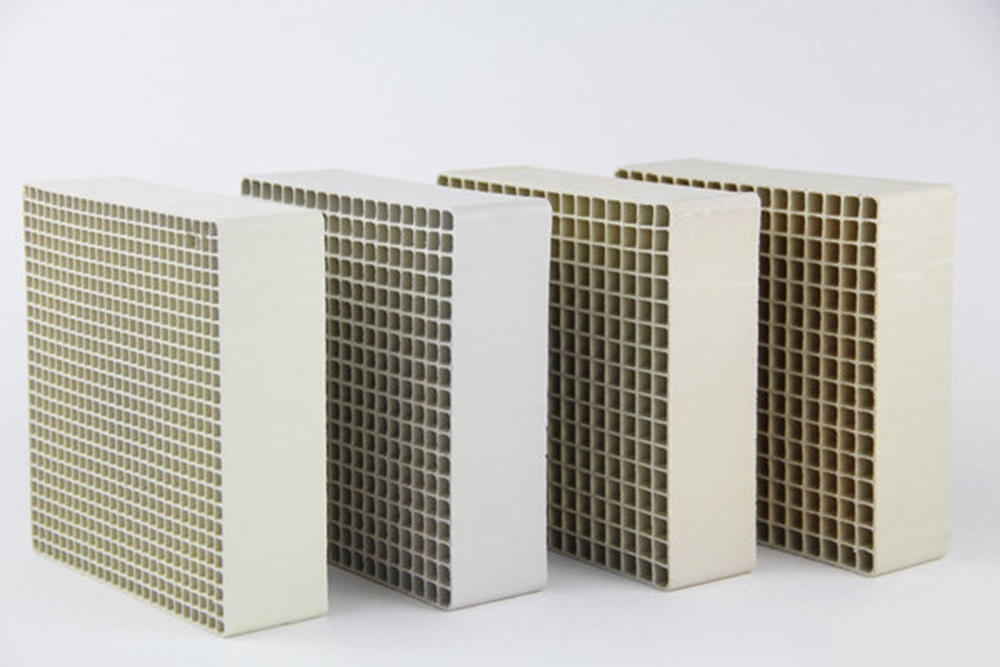

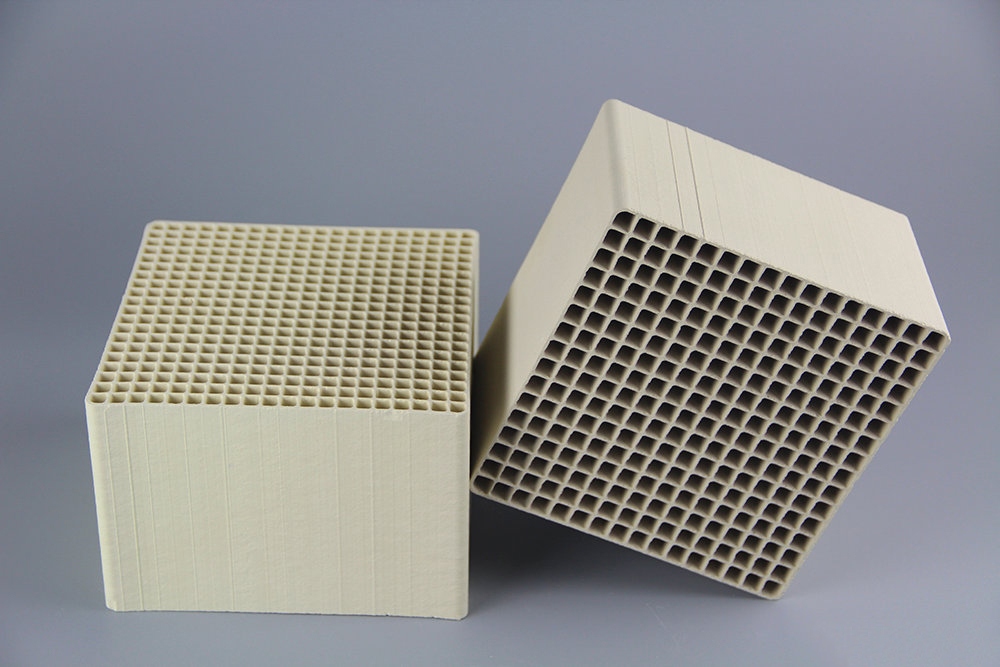

DeNOx Honeycomb Catalyst Introduction
Honeycomb catalysts consist entirely of catalytically active materials (titanium dioxide, vanadium oxides, tungsten oxides) and commonly are used in low dust applications.
High specific surface area
High activity in low-dust flue gases
Variable pitch and length
Low-dust flue gas applications (<10g/M3)
Typical industrial applications:
SCR denitration catalyst belongs to high-tech products, mainly for the efficient denitration power plant flue gas, waste incineration of nitric acid tail gas industry and nitric acid plant, nitrate plant, steel plant, chemical fertilizer plant and other industries.
Principle: the catalyst at a certain temperature (200--400 °C), using ammonia as the reducing agent,take the advantage of the reducing agent selective, preferentially react with industrial emissions of nitrogen oxide, NOx catalytic reduction to nitrogen and water which no environmental pollution, has accelerated the catalytic role, to eliminate the purpose of NOx.
Main specifications & technical index of honeycomb SCR catalyst:
|
Hole Number (PCS) |
Cross Section (mm) |
Hole Dia. (mm) |
Wall Thickness (mm) |
Catalyst Pitch (mm) |
Open Porosity (%) |
Specific Surface Area (m2/m3) |
Applicable Scope |
|
15×15 |
150×150 |
8.45 |
1.35 |
9.80 |
71.40 |
338 |
Coal fired unit, high smoke dust |
|
16×16 |
150×150 |
8.00 |
1.20 |
9.20 |
72.82 |
383 |
|
|
18×18 |
150×150 |
7.10 |
1.10 |
8.20 |
72.60 |
409 |
Coal fired unit, medium dust |
|
20×20 |
150×150 |
6.40 |
1.00 |
7.40 |
72.82 |
469 |
|
|
21×21 |
150×150 |
6.10 |
0.95 |
7.05 |
72.93 |
478 |
Coal fired unit, low smoke dust |
|
22×22 |
150×150 |
5.80 |
0.90 |
6.70 |
72.36 |
499 |
|
|
25×25 |
150×150 |
5.00 |
0.90 |
5.90 |
69.44 |
577 |
Coal fired unit, very low dust |
|
30×30 |
150×150 |
4.10 |
0.80 |
4.90 |
67.24 |
693 |
Oil fired unit, very low dust |
|
35×35 |
150×150 |
3.65 |
0.55 |
4.20 |
72.53 |
795 |
|
|
40×40 |
150×150 |
3.20 |
0.50 |
3.70 |
72.82 |
910 |
Natural gas fired unit |
|
45×45 |
150×150 |
2.78 |
0.50 |
3.28 |
69.56 |
1000 |
|
|
55×55 |
150×150 |
2.20 |
0.50 |
2.70 |
65.07 |
1275 |
|
|
Unit catalyst size:150×150×(length300-1350) mm. |
|||||||
According to the customer's requirements, we can produce different pitch and formulations of honeycomb SCR de NOx catalyst.
SCR DeNOx process
SCR DeNOx process is inovative, environmentally friendly and effective solution to reach the requested performance at an optimised cost.
The honeycomb SCR catalyst packaging
Carton box to pallet, wooden case or as per customer's requirements.
After Sale Service
1.OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry within 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.Quality Guarantee, If there have any quality problems with products, we are willing to be replaced free.
6.rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours.If any problem, We will arrange professional engineers within 48 working hours to solve it.
7. All goods will be inspected and tested before shipment.
Customer’s satisfactory is most important to us. If you have any problems about our products. Please feel free to contact us with any comments you may have;
FAQ
Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter, more than 16 years experience.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Anhui Province,3 hour by high speed rail from Shanghai.Warmly welcome to visit us anytime.
Q: How do you control the quality?
A: We insist "Quality First, Customer First", always pay attention to quality control from the beginning to the end,Alibaba Gold Supplier,TUV certification assigned by Made-in-China.
Q: How can I get the quotation?
A: Tell us the specifications, such as working situation, dust or fume characteristics, air volume(CFM), filter area(M2), inlet temperature(℃), wind speed(M/min) etc. We will send the quotation within 24 hours.
Q: How to pay for the product?
A: T/T, L/C, Western Union, Paypal are available.
Q: How long is the delivery time?
A: About 5-40 days upon the payment.
Q: How about the after-sale installation of dust collector?
A: 1.We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector onsite.
2.We also can provide installing turn-key projects overseas.
