full series needle felt fabric filter custom polyester nylon aramid pps ptfe acrylic pp fiberglass dust collector filter bag

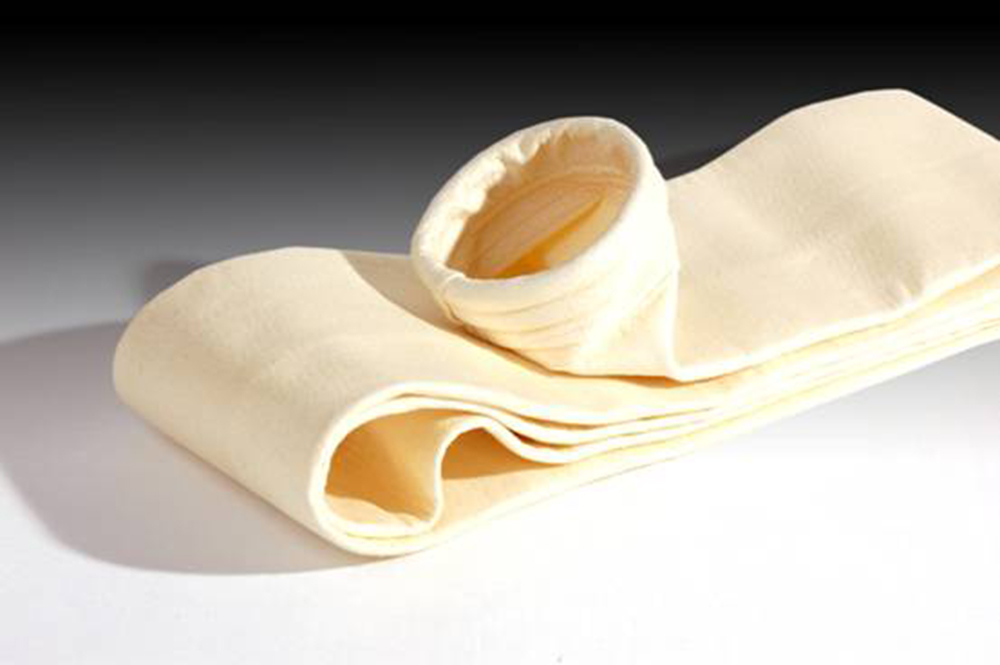

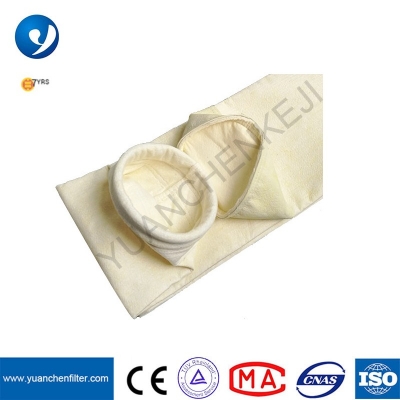

1. Brief Introduction Of Acrylic Filter Cloth Bags
The chemical name of acrylic dust filter sleeve bag is polyacrylonitrile. It is used as raw material to make felt by needle punching method, and then through special water repellent treatment to obtain acrylic medium temperature hydrolysis resistant needle punched filter felt. The air permeability of the product is 14m3/m2·min, and it works instantly. Temperature: 160℃, normal working temperature is 140℃. The needle felt filter cloth uses acrylic woven fabric as the base fabric to enhance the vertical and horizontal strength. The product has excellent chemical resistance and hydrolysis resistance. It is widely used in garbage incineration, asphalt, spray dryer, Dust collection industry for coal mills, power plants and other flue gas.
2. We pay attention to following processing matters:
(1) Precise design required size of the filter cloth for filter bag parts, the dust filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories such as filter bag cages, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.
Technical Specification
Name/Quality
100% acrylic w/ PTFE membrane
Component
Shell Fiber
100% Acrylic (DT)
Scrim
100% Acrylic (DT)
Weight
550g
Thickness
2.0mm
Air Permeability /127Pa cm3/cm2.s
4
Tensile Strength N/5*20CM
Length
≥800
Cross
≥1000
Elongation at break %
Length
≤25
Cross
≤35
Temperature ℃
Continue
125
Peaks
140
Finish
Heat Stabilization,Glaze, Singe, PTFE macerate,PTFE Membrane
Use Scope
Cenment, Steel, Construction，Metallurgy;
3. Remarks
1) The length of dust bag filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection: Non Woven Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required dust filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4. Advantages:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could control quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
5. Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

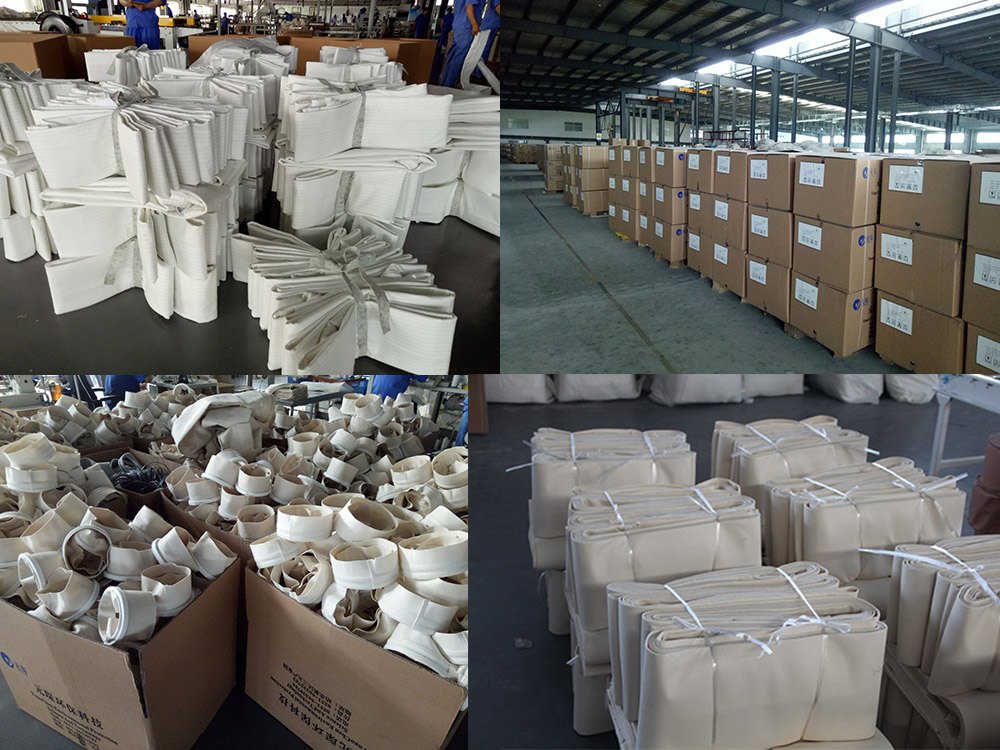

6. The bag filter dust sleeves packaging:
Different types of non-woven dust filter bag must be individually packaged. In general, it is wrapped in plastic bags for waterproof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
