Dust filter bags

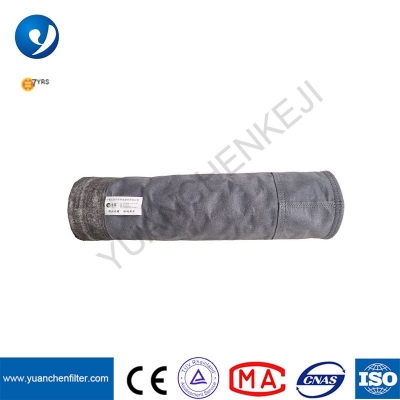

Factory Customized Fire Retardant Non-woven Dust Filter Sock Sleeves

Fire Retardant Non-woven Dust Filter Bag

  • Item NO.:

    FR-01
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100% Polyester
  • Weight:

    600-650 gsm
  • Thickness:

    2.6-2.9mm
  • Temp. Range:

    Continue 130℃ Peak 150℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

Factory Customized Fire Retardant Non-woven Dust Filter Sock Sleeves


1.Product Description



2.Dust Filter Fabric (made for dust filter sleeves)Performance Evaluation


3.Technical Data

Technical Specification

Name/Quality

Flame Retardant Polyester Filter Fabric

Component

Shell Fiber

100% PE

Scrim

100% PE Filament Fiber

Weight

600-650gsm

Thickness

2.6-2.9mm

Air Permeability/m³/m³/min

14-16

Tensile Strength/N/5*20CM

Length

≥1200

Cross

≥1500

Heat Shrink%

Length

<1%

Cross

<1%

Temperature/( Celsius Degree)

Continue

130

Peaks

150

Finish

Singeing, Calendering, Heat-set, PTFE Membrane

Use Scope

Cement, Steel,  Construction, Metallurgy,Biomass Boiler


4.Dust Filter Cloth Bag Burning Case


5.Project Case-Biomass Boiler Project

Processing technology: "Xingmei" flame retardant filter material filter material
Inlet: Dust concentration 20000mg/Nm3
Flue gas temperature: long-term <240℃, instantaneous 280℃
Outlet: Dust concentration 10mg/Nm3
Bag dust removal method: pulse cleaning
Flue gas NO2 concentration <300mg/Nm3
Flue gas SO2 concentration <200mg/Nm3
Oxygen content in flue gas <15%
Flue gas moisture content <20%
Application industry field: heating
Coal burning form: biomass heat transfer oil furnace


6.Why choose Flame Retardant Polyester Filter Socks not Common Polyester Filter Sleeve?

5.1 Dust is flammable

5.2 Mars Intervenes

5.3 Dust Electrostatic


7.The Filter Bag Packaging

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.


8.FRQ

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
