Dust filter bags

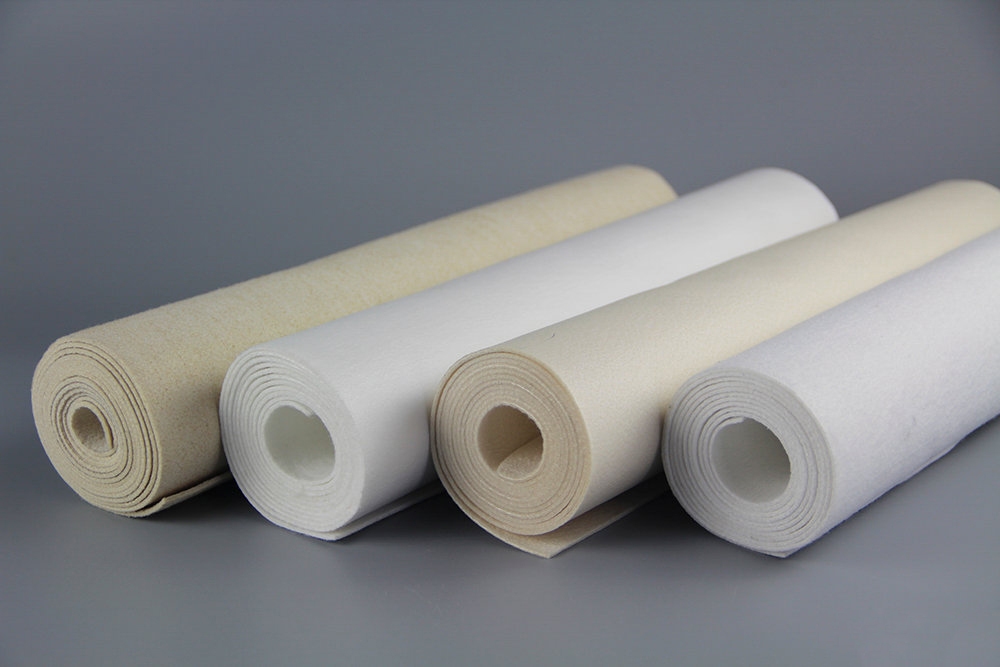

Eco-friendly Non-woven Fabric Needle Punched Felt Industrial Filter Cloth

Needle Punched Felt Air Dust Filter PPS Fabrics
1.Excellent anti-abrasion capacity
2.High filtration efficiency
3.Good raw material, competitive price
4.Fast delivery
5.Size can be customized

  • Item NO.:

    PPS-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100%PPS
  • Weight:

    500 550 600 gsm
  • Thickness:

    1.7±0.2mm
  • Temp. Range:

    Continue 160℃ Peak 190℃
  • Application:

    Cement,Steel,Construction,Metallurgy,Power Plant
  • Product Detail

Eco-friendly Non-woven Fabric Needle Punched Felt Industrial Filter Cloth


1.Filter fabric PPS Filter Media Needle Punched Felt for Industry Introduction

Needle-punched felt is a felt-like non-woven filter material made by needle-punching the carded fibers, using mechanical methods to entangle the fibers with each other, and reinforcing the fiber web.


2.Technical data show

Technical Specification

Name/Quality

100% PPS

Component

Shell Fiber

100% PPS



Scrim

100% PPS

Weight

550±5% gsm

Thickness

1.7±0.2mm

Air Permeability /200Pa  L/dm2.min

20-50

Tensile Strength   N/5*20CM

Length

≥900



Cross

≥1200

Elongation at break %

Length

≤30



Cross

≤50

Temperature                                        ( Celsius Degree)

Continue

160



Peaks

190

Finish

Singeing,Calendering,Heat-set

Use Scope

Cement, Steel,  Construction, Metallurgy


3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


4.Yuanchen Service:

1)We could provide OEM & ODM service.

2)We holds that customer first and quality first.
3)We provide fast delivery, including air express, sea transportation and land carriage
4)We use various payment methods: L/C, T/T, Paypal, western union.


Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate

Soap powder

The Yuanchen filter fabrics needle punched felts package:

1. Plastic film inside and nylon bag outside
2. We make package as your requirements
3. We are sure that our goods are protected well


FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

   2. We respect every customer as our friend and we sincerely do business and make  friends with them.
