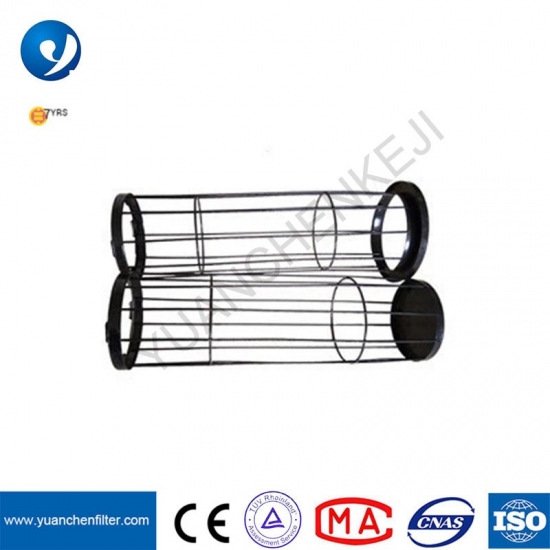

Dust collector filter cage / skeleton with coating
Product Description
the galvanized frame is also called galvanized dust bag cage.it is the use of galvanized technology outside the frame that has been welded to form abrasion and corrosion resistance.it can effectively prevent the galvanized frame.the use of galvanized technology extends the life of galvanized dust bag cages.
More Industrial dust collector bag filter cages with venturi tube display

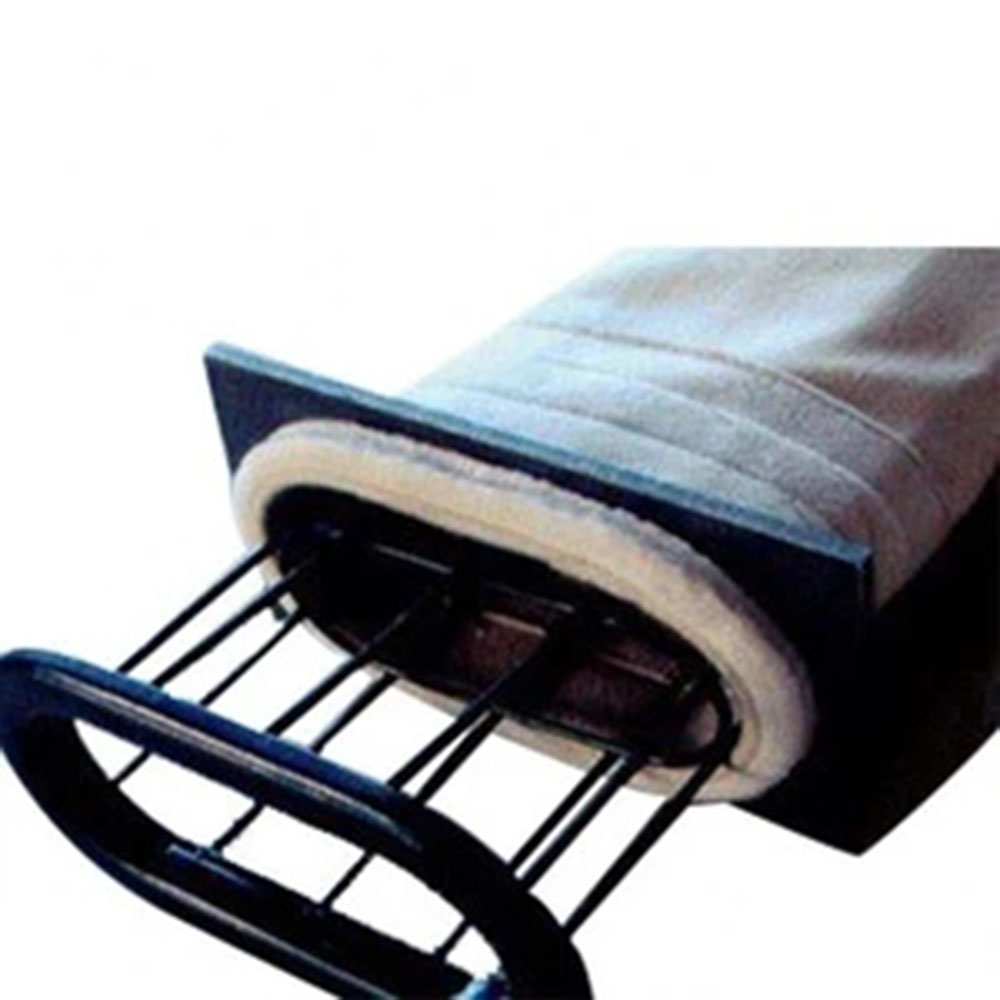

high welding strength stainless steel oval housing silicone fiberglass house dust collector bag filter cage with venturies
Our Yuanchen Group make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.
Note:The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the dust removal frame filter bag cage can be according with the requirement from client.
Dimension Recommended for Manufacturers Baghouse Framework Filter Bag Cages For Dust Collector
A.Round Style
|
ΦDiameter |
Bag Diameter |
Length |
|
115 |
120 |
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 |
|
125 |
130 |
|
|
147 |
152 |
|
|
195 |
200 |
B.Flat Style
|
Perimeter |
Bag Perimeter |
Length |
|
800 |
800 |
2000 3000 4000 |
|
900 |
900 |
5000 6000 |
C.Envelope Style
|
Length Width Thickness |
Bag Length Width Thickness |
|
1500*750*25 |
1500*750*25 |
Specifications for Filter cages
Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Package of Industrial Customized filter cage 316L 304SS carbon steel material 135mm*6m 16 wire 4mm with venturi for bag filter matching filter bag
We provide all kinds of standard export packing for cargo protection. The dust bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
Application of Stainless steel 304 Stainless steel 316L dust filter bag cages
Application:
- Mine industry.
- Medicine industry
- Plastic, food industry.
- Coal fired power stations.
- Steel power station.
- Cement industry.
- Paper industry.
- Building and construction industry.
- Other industrial segments.
FRQ
Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact us if you have any questions.
