Filter sleeves are composed by non woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter sock dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.

Filter bag are composed by non woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter sleeves dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.

Selective Catalyst Reduction Honeycomb SCR Denitration Catalyst SCR Catalyst System is based on the addition of ammonia (NH3) to the NOx-containing flue gas and passing the mixture over an active catalyst. This converts the nitrogen oxides (NO and NO2) to naturally occurring nitrogen (N2) and water (H2O). Together, our high-activity catalyst and low pressure drop result in cost-effective NOx reduction. Yuanchen SCR technology is impressively cost-efficient compared to other NOx control technologies.

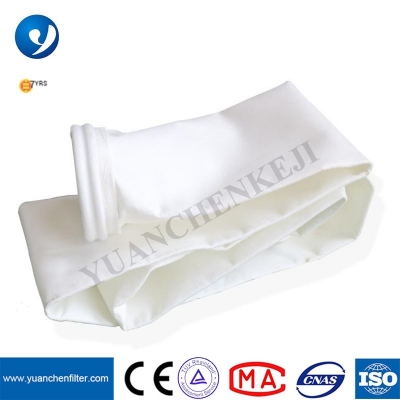

Dust Filter bags are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.

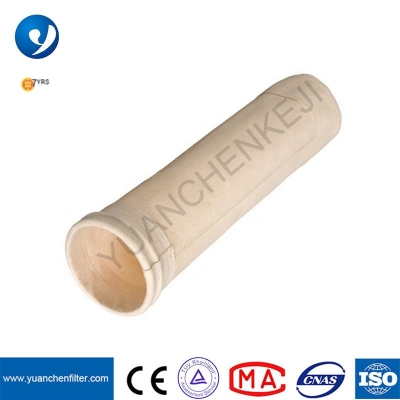

Material:Nomex(Aramid)     Temperature:200-240 degree  Finish:Singed/Calendering/Heat Setting/PTFE membrance

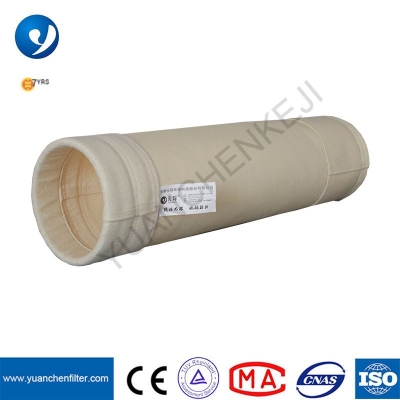

PPS dust filter bag is a kind of filter material which is made by PPS fiber (polyphenylene sulfide) through three-dimensional needling. It can be used for a long time at around 160 °C.

Pleated Dust Collection Bag is the latest and most innovative industrial dust collection technology on the market today. Large number of factories, industrial units are switching to the Dust Collection Filter technology from traditional bags and cage technology because of various advantages like higher filtration area, Lower Pressure Drop, Reduction in size of dust collection system.YUANCHEN filter is a leading Pleated Dust Collection Bag Manufacturer, our pleated filter bags are designed to have many different folds of fabric in a smaller area than a traditional bag. These bags are made up of 100 % spun bonded polyester media with different coatings on it. These coatings are variable and put as per the need and requirements of a particular industry or the applications. This spun bonded polyester media can accommodate desired filtration area as it has different pleated depths & heights.

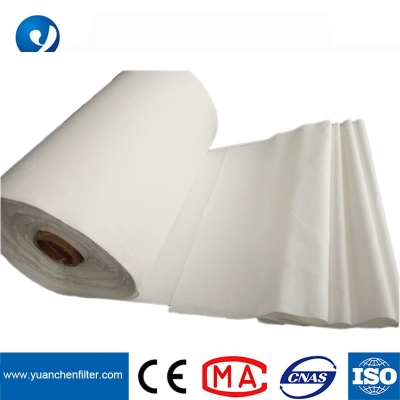

PTFE needle punched felt are produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature.

Features and advantages of needle felt filter fabrics: 1) Needle filter felt makes the air filter bags has a high and stable dust collection efficiency. 2) The statical dust capture rate of needle felt filter cloth could up to 99.5% ~ 99.99%. 3) The porosity of needle filter felt is as high as 70% ~ 80%, which is 1.6 ~ 2.0 times of woven filter fabrics, it gets larger air permeability and lower air resistance.
